Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors
between 2 multimedia computers

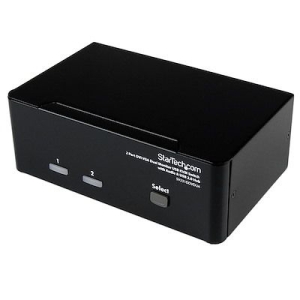

The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete
multimedia switching solution, letting users control two Dual Display computers
using a single USB mouse and keyboard peripheral set.
With support for high-resolution video interfaces, this dual view KVM switch
provides one VGA (analog) and one DVI-I port per computer connection, as well as
audio switching capability between connected computers.
Delivering versatility for virtually any application, the DVI/VGA KVM switch
features an integrated 2-port USB hub that allows connected USB 2.0 peripherals
to be shared between connected computers, eliminating the need to purchase
duplicate peripherals.
Suitable for any workspace, the dual monitor KVM switch offers a compact
desktop KVM design and features a rugged metal chassis that helps ensure durable
performance.
This product is TAA compliant and backed by a Startech.com 3-year warranty
with free lifetime technical support.
Specifications
|
Warranty
Information |
|
|
Warranty |
3
Years |
|
Connector(s) |
|
|
Console
Interface(s) |
1
- VGA (15 pin, High Density D-Sub) |
|
1
- DVI-I (29 pin) |
|
4
- USB 2.0 Type-A (4 pin, 480Mbps) |
|
2
- 3.5 mm Mini-Jack (3 Position) |
|
Host
Connectors |
2
- VGA (15 pin, High Density D-Sub) |
|
2
- DVI-I (29 pin) |
|
2
- USB B (4 pin) |
|
4
- 3.5 mm Mini-Jack (3 Position) |
|
Environmental |
|
|
Operating
Temperature |
0C
to 40C (32F to 104F) |
|
Storage
Temperature |
-20C
to 60C (-4F to 140F) |
|
Humidity |
80%
RH |
|
Hardware |
|
|
Audio |
Yes |
|
KVM
Ports |
2 |
|
PC
Interface |
USB |
|
PC
Video Type |
DVI+VGA |
|
Number
of Monitors Supported |
2 |
|
Rack-Mountable |
No |
|
Cables
Included |
No |
|
Daisy-Chain |
No |
|
Indicators |
|
|
LED
Indicators |
2
- Green - PC Detected |
|
1
- Green - Power |
|
2
- Red - PC Indicator |
|
Packaging
Information |
|
|
Package
Height |
72
mm [2.8 in] |
|
Package
Length |
19.9
cm [7.8 in] |
|
Shipping
(Package) Weight |
1.3
kg [2.8 lb] |
|
Package
Width |
29.5
cm [11.6 in] |
|
Performance |
|
|
On-Screen
Display |
No |
|
DVI
Support |
Yes
- Single Link |
|
IP
Control |
No |
|
Hot-Key
Selection |
Yes |
|
Maximum
Digital Resolutions |
1920
x 1200 |
|
Maximum
Number of Users |
1 |
|
Port
Selection Support |
Push
Button and Hotkeys |
|
MTBF |
64,691
Hours |
|
Physical
Characteristics |
|
|
Weight
of Product |
779
g [27.5 oz] |
|
Color |
Black |
|
Material |
Steel |
|
Product
Length |
16.3
cm [6.4 in] |
|
Product
Width |
16
cm [6.3 in] |
|
Product
Height |
5.7
cm [2.2 in] |
|
Product
Depth |
100
mm [3.9 in] |
|
Power |
|
|
Power
Source |
AC
Adapter Included |
|
Input
Voltage |
100
- 240 AC |
|
Input
Current |
0.8A |
|
Output
Voltage |
12V
DC |
|
Output
Current |
1.5A |
|
Center
Tip Polarity |
Positive |
|
Plug
Type |
M |
|
Power
Consumption (In Watts) |
18 |
|
Software |
|
|
OS
Compatibility |
OS
independent; No software or drivers required |
|
Special
Notes / Requirements |
|
|
Note |
This
KVM switch supports DVI-D (digital) signaling only and it is recommended
wherever possible to use DVI-D cabling across all PC to KVM and KVM to
Console connections to ensure proper function. Please contact technical
support if you require assistance identifying the proper
cables. |
|
What's
in the Box |
|
|
Included
in Package |
1
- 2-port KVM switch |
|
4
- foot pads |
|
1
- universal power adapter (NA/EU/UK/AU) |
|
1
- instruction manual |
