All stock codes associated to this product
SV565UTPU, 2977644

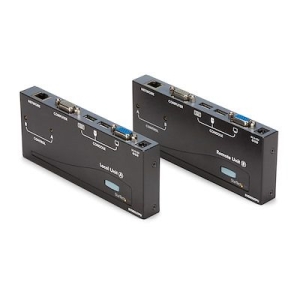

Startech USB VGA Console Extender over CAT5 UTP (500 ft)
Overview
Operate a USB & VGA KVM or PC up to 500ft away as if it were right in
front of you
- USB computers are supported at the host and remote locations (USB keyboard
and mouse required for remote console)
- Cables Included for a ready out of the box setup
- Can be used with a single computer or connected to an existing KVM
switch
- Easy installation using industry-standard UTP network
cable
- Intuitive hotkey commands
- Supports most combo keyboard and mouse sets (including
Wireless)
- Supports auto-switching between host and remote users or dedicated
control
The SV565UTPUGB USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you
control a server, computer or multiple computers (connected through KVM Switch)
over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to
500 ft (150 m) away. PC connection cables are included with this product for a
ready out of the box solution.
You can use your existing keyboard, mouse, and monitor to access both the
server room and your office computer, saving space and avoiding the need for a
dedicated remote console by allowing you to switch between workstation view and
KVM view at the remote location.
Specifications
|
Warranty
Information |
|
|
Warranty |
2
Years |
|
Connector(s) |
|
|
Console
Interface(s) |
1
- VGA (15 pin, High Density D-Sub) |
|
2
- USB 2.0 Type-A (4 pin, 480Mbps) |
|
Host
Connectors |
1
- VGA (15 pin, High Density D-Sub) |
|
Other
Interface(s) |
1
- RJ-45 |
|
Environmental |
|
|
Operating
Temperature |
0C
to 40C (32F to 104F) |
|
Storage
Temperature |
-20C
to 60C (-4F to 140F) |
|
Humidity |
0~80%
RH |
|
Hardware |
|
|
Audio |
No |
|
KVM
Ports |
2 |
|
PC
Interface |
USB |
|
PC
Video Type |
VGA |
|
Number
of Monitors Supported |
1 |
|
Rack-Mountable |
No |
|
Packaging
Information |
|
|
Package
Length |
30
cm [11.8 in] |
|
Package
Width |
25
cm [9.8 in] |
|
Package
Height |
90
mm [3.5 in] |
|
Shipping
(Package) Weight |
1.7
kg [3.8 lb] |
|
Performance |
|
|
IP
Control |
No |
|
Max
Transfer Distance |
150
m (492 ft) |
|
Supported
Resolutions |
1280x1024
@ 300ft(100m) |
|
1024x768
@ 500ft(150m) |
|
MTBF |
126000
hours |
|
Physical
Characteristics |
|
|
Color |
Black |
|
Material |
Steel |
|
Product
Length |
75
mm [3.0 in] |
|
Product
Width |
15.5
cm [6.1 in] |
|
Product
Height |
2
cm [0.8 in] |
|
Weight
of Product |
299
g [10.6 oz] |
|
Power |
|
|
Power
Source |
AC
Adapter Included |
|
Input
Voltage |
100
- 240 AC |
|
Input
Current |
0.2
A |
|
Output
Voltage |
9V
DC |
|
Output
Current |
0.6
A |
|
Center
Tip Polarity |
Positive |
|
Plug
Type |
M |
|
Power
Consumption (In Watts) |
5.4 |
|
Software |
|
|
OS
Compatibility |
OS
independent; No software or drivers required |
|
Special
Notes / Requirements |
|
|
Note |
Product
weights, measurements and connectors indicate a single unit only (either
Host or Remote) |
