All stock codes associated to this product
1607458, SV431DDVDUA

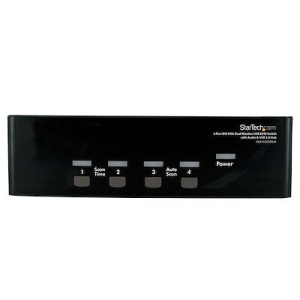

Startech 4 Port DVI VGA Dual Monitor KVM Switch USB with Audio &
USB 2.0 Hub
Overview
Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors
between 4 multimedia computers
- Direct channel selection and operation using front panel push-button or
keyboard hotkeys
- Supports a maximum digital resolution of 1920 x 1200 and analog of 1920 x
1440; Recommended resolution is 1920 x 1200
- OS independent (no drivers or software required)
- Independent or simultaneous audio switching
- Full support for plug-n-play peripherals
- Rugged, all-metal chassis for use in harsh environments
- Status LED display for easy port status monitoring
- USB style keyboard and mouse, plus two other USB 2.0 peripherals can be
shared between up to two computers
- Tone indicator for computer switching
- Selectable time intervals for auto scan
- Rear function key to adjust video strength
- HDCP compliant
- Support DDC2B emulation and EDID pass through, which allows the display
adapter to recognize and auto configure screens to match the display
capabilities
- Supports Dual Monitor/Flat Panel Displays [1 x DVI + 1 x
VGA]
The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4
Dual Display computers using a single USB mouse and keyboard peripheral
set.
This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer
connection for high-resolution video, as well as audio switching capability
between connected computers.
The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB
2.0 peripherals to be shared between connected computers, and offers a compact
design with a rugged metal chassis for durable performance.
NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM,
source PCs must output the same signal for proper switching. It is recommended
wherever possible to use DVI-D cables across all PC to KVM and KVM to Console
connections. If necessary, please contact technical support for assistance
identifying your source.
