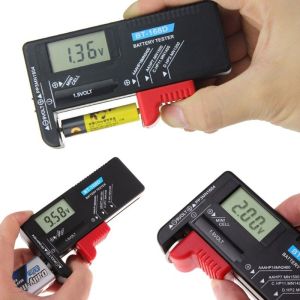

BT-168D | Microtech Universal Digital Battery Voltage Tester Volt Checker

Universal Digital Battery Voltage Tester for 9V,- 1.5V Button Cell  - AA/AAA

Feature:
1.No batteries required, powered by the battery being tested.
2.Test standard and rechargeable batteries: 9V, AA, AAA, C, D, 1.5V Button Type cells.
3.Digital display of test results
4.For anyone who uses regular or rechargeable batteries on a regular basis

Specifications:
Model: BT-168D
Weight: 44g
Size: 110.8mm * 60.5mm * 25.5mm * 41.3mm/4.36*2.38*1*1.63"
Range: 1.2V ~ 4.8V

Functions:
Can be used to test the following battery sizes:
For 9V, D, C, AA, AAA, button batteries, 18650 14500 lithium batteries.

Using the Tester:
IMPORTANT: Please ensure the positive (+) and negative (-) electrodes are the correct way around before testing.
1.9V battery test: Put the battery into two test holes on the top of the tester.
2. For all other battery types: Slide open the test arm and clamp the battery in the test arm with the Negative (-) using the red slider.
3. Please make sure the connectors are wiped clean before use.
4.The results will be displayed on the screen

For 1.5V Batteries: Good = 1.5V~1.28V; Low power = 1.27V~1.15V; Replace = Below: 1.15V.

For 9V Batteriese:  Good = 9V~7.8V; Low power = 7.7V~6V; Replace = Below: 6V.

Included:
1 X Battery Tester
