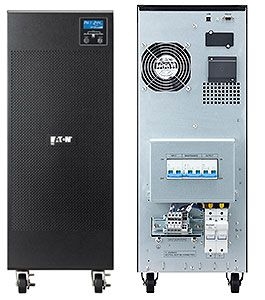

EATON 9E 6kVA 1:1 UPS Tower

IMG 1 of 1
Our Price:
$4,722.55
RRP:
$6,697.90
You Save:
$1,975.35
or quickly purchase this product
Backorder
Part Number:
518212
(?) Brand:
EATON Web Site
Manuf No:
9E6KI
Shipping Weight:
82 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
2741770, 9E6KI

Eaton 9E 6kVA 1:1



Specifications

General

Topology

Online double conversion

Configuration

Tower

Part Number

9E6Ki

Rating (VA/Watts)

6000/4800

Dimensions (H x W x D, mm)

708.5 x 262.4 x 612.9

Weight (kg)

68

Warranty

1 year

Electrical Input

Connection

Hardwired - see manual for terminal block layout

Input Voltage Range

176-276V without derating (up to 110-276V with derating)

Nominal Voltage

220/230/240V

Frequency

50/60 Hz autoselection

Frequency Range

45-66 Hz

Short Circuit Current

82 A

Electrical Output

Voltages

220V/230V/240V 2 %

Voltage THD

<3%

Outlets

Hardwired - see manual for terminal block layout

Overload Capacity

105%-110% : 5min, 110%-130% : 1min, 130%-150% : 10s, >150% : 100ms

Efficiency (Normal Mode)

Up to 93% in Online mode, 97% in ECO mode

Output Frequency

50/60 Hz autoselect

Communications

Communication Ports

1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)

Communication Slot

1 slot for Network-M2, ModBus-MS or Relay-MS cards

Power Management Software

Intelligent Power Software

Environmental & Standards

Audible Noise

<55dB

Operating Temperature

0 to 40C

Safety markings

IEC/EN 62040-1

EMC Markings

IEC/EN 62040 -2

Approvals

CE, CB report (TUV)
