All stock codes associated to this product
PB-650W, PB650W, 4508119
Inwin PB 650W 80 PLUS Gold PSU
Overview
CUSTOMIZE WITHOUT COMPROMISE
The all new PB Series is an 80 PLUS Gold certified gaming power supply.
Gamers can adjust the colors of the built-in RGB LED fan to match personal
preferences. Produce a light show in your gaming rig!
Sync Lighting Effects
The PB Series is compatible with RGB-supported motherboards(4pin, 12V).
Simply activate the motherboard software and the power supplys RGB LEDs will
perfectly complement your gaming rig.
RGB Mode
Gamers can also turn off the M/B RGB override button to manually switch the
colors or activate the breathing effect. This mode provides eight options: Red,
green, dark blue, yellow, purple, light blue, white and breathing effect.
Completely match the theme of your rig!
The power supply also features a built-in memory function to save the applied
color, insuring the same selected color appears every time you boot your
PC.
Hibernation Mode; Balancing Noise and Thermal
Levels
The fluid dynamic bearing (FDB) 135mm fan will switch to hibernation mode
automatically once the systems load is lower than 20%. This will maintain the
power supplys stability and noise levels. The fan will begin to rotate when the
systems load is over 20% at a silent 18dBA output.
80 PLUS Gold Certified Fully-Modular Power
Supply
The PB Series delivers up to 90% efficiency, generating less heat and
effectively reducing operating cost.
5V and 3.3V DC to DC Design
The DC to DC converter design provides superior dynamic response and supports
a foundation for greater system stability.
Highly Reliable Japanese Aluminium Electrolytic
Capacitors
Premium Japanese capacitors with 105C rating improve power stability at
higher temperatures and provides an ultra-long lifespan.
Fully Modular Cables for Quick and Easy
Installation
The fully modular and low-profile cable design lets gamers quickly and easily
install for tidier cable management.
Specifications
|
Model |
PB-650W |
PB-750W |
PB-850W |
|
Part
Number |
IW-PB650-RGB |
IW-PB750-RGB |
IW-PB850-RGB |
|
Total
Power |
650W |
750W |
850W |
|
Material |
SECC |
|
Type |
ATX12V V2.4 / EPS12V V2.92 |
|
Cable
Management |
Fully Modular |
|
PFC |
Active PFC ( >0.9) |
|
Efficiency |
80 PLUS Gold (Up to 90%) |
|
MTBF
(Hours) |
>100,000 hrs. |
|
AC
Input |
100 - 240Vac. 50-60Hz |
|
Fan |
135mm FDB Fan |
|
(RGB Lighting) |
|
Typical
Load Fan Noise(dBA) |
<25dBA |
|
(50%
Loading) |
|
Operating
Temperature Range (C) |
0~40
C |
|
Full
Protection |
OCP
/ OVP / UVP / SCP / OTP / OPP |
|
Safety
Certifications |
cTUVus
/ TUV / CB / BSMI / CE / FCC / EAC / CCC / RCM |
|

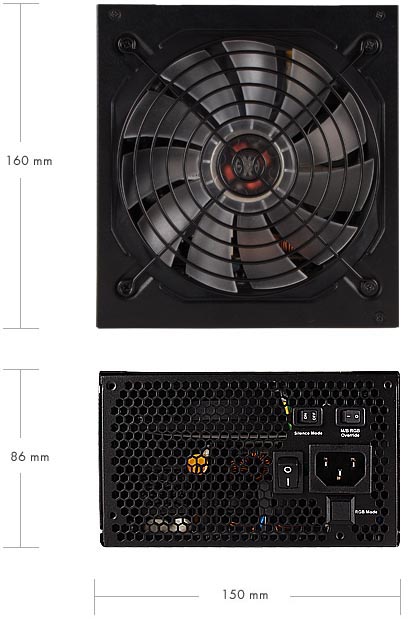

Dimensions
(L x W x H) |
160
x 150 x 86mm |
|
Package
Dimensions |
210
x 325 x 100mm |
|
(L
x W x H) |
|
Net
Weight |
2.35
kg |
2.46
kg |
2.64
kg |
|
Gross
Weight |
2.81
kg |
2.92
kg |
3.12
kg |
|
Warranty |
5
Years |
|

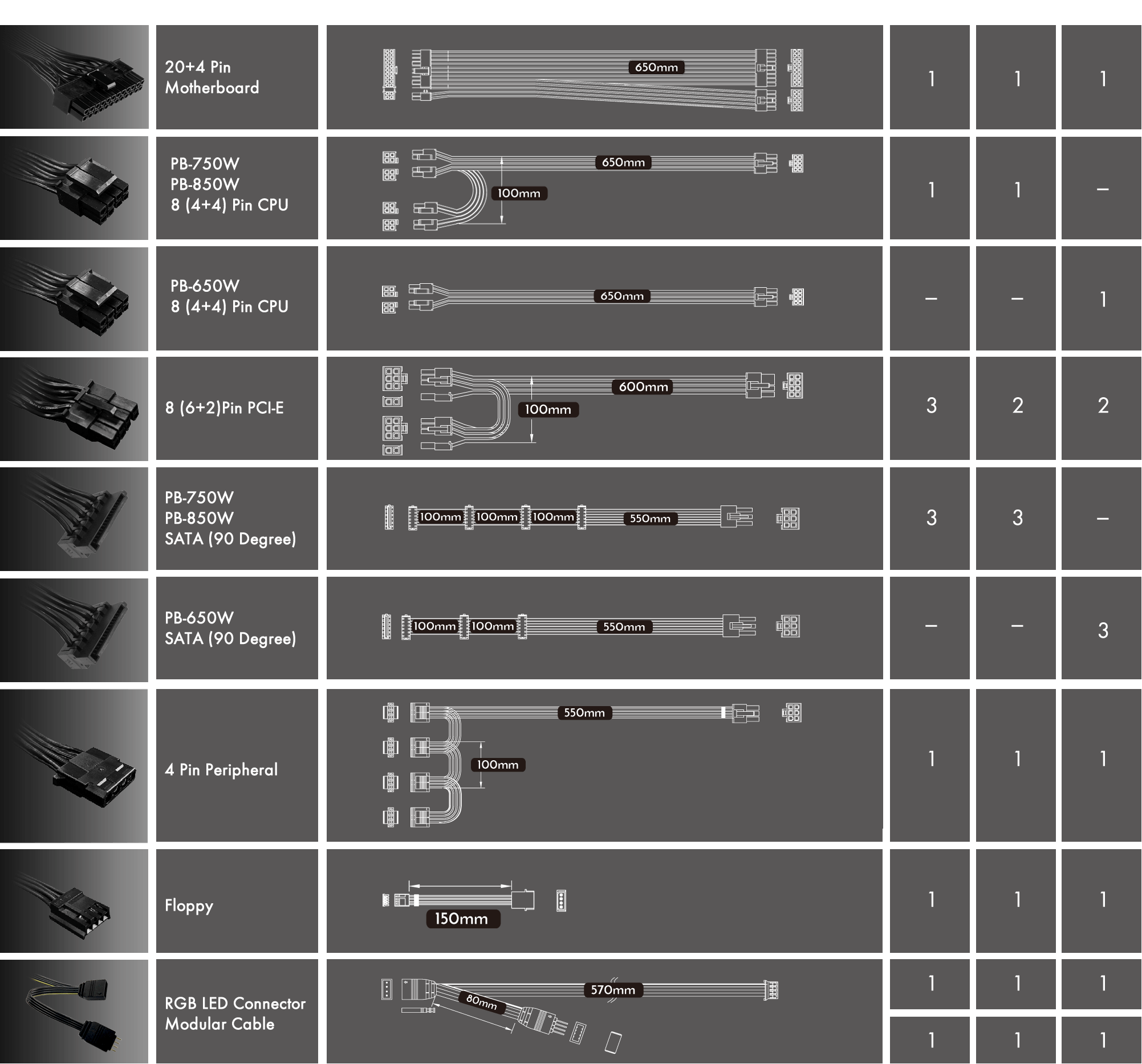

Connector |
20+4
Pin Motherboard |
1 |
1 |
1 |
|
8
(4+4) Pin CPU |
1 |
2 |
2 |
|
8
(6+2) Pin PCI-E |
4 |
4 |
6 |
|
4
Pin Peripheral |
4 |
4 |
4 |
|
SATA
(90 Degree) |
9 |
12 |
12 |
|
Floppy |
1 |
1 |
1 |
|
RGB
LED Connector Modular Cable |
Lighting |
1 |
1 |
1 |
|
RGB
LED Controller |
1 |
1 |
1 |
