QNAP QXP-1600eS-A1164 Easily expand PC and NAS storage
Overview

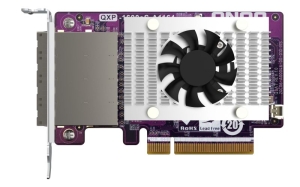

The QNAP QXP-1600eS-A1164 expansion card is designed for QNAPs TL series JBOD
storage enclosures that support SATA drives. The storage capacity of a QNAP NAS
or Windows/ Ubuntu (Linux) PC can be easily expanded by installing a
QXP-1600eS-A1164 into a PCIe slot, and then connecting it to a TL series JBOD
storage enclosure using an SFF-8088 or SFF-8644 cable. The low-profile card
form-factor allows the QXP-1600eS-A1164 to be compatible with a wide range of
NAS, computers, and servers.
Supports QNAP NAS and Windows/Ubuntu PCs
Each SFF-8088 or SFF-8644 (internal) connector on the QXP-1600eS-A1164
supports up to four SATA drives. A QXP-1600eS-A1164 can be installed based on
the number of drives you want to connect for storage expansion. For example, a
QXP-1600eS-A1164 can be connected to a 16-bay desktop TL-D1600S JBOD enclosure
or a 12-bay rackmount TL-R1200S-RP JBOD enclosure; it can also be connected to
two 8-bay desktop TL-D800S JBOD enclosures simultaneously or connected to a
12-bay rackmount TL-R1200S-RP JBOD enclosure and a 4-bay rackmount TL-R400S JBOD
enclosure simultaneously.
Note: To update the firmware of TL JBOD storage enclosure through QTS or JBOD
Manager, make sure all the device connection (including the NAS/PC, QXP SATA
HBAs, and TL JBOD storage enclosures) is completed.
Specifications
|
Controller |
4
x PCIe to SATA Controllers |
|
Connector |
4
x SFF-8644 |
|
Supported
SATA driver numbers |
16
x SATA 6Gb/s drives (Each SFF-8644 internal connector supports four SATA
drives) |
|
PCIe
interfaces |
PCIe
Gen3 x8 (64Gbps) |
|
Supported
operating systems |
QTS
4.5.4 or later, QuTS hero h4.5.4 or later |
|
-
Windows 8 or later |
|
-
Windows Server 2012 R2 or later |
|
-
Linux with Kernel 3.10 or later |
|
Form
factor |
117.72
x 68.9 x 18.26 mm |
|
(Without
connector 111.65 x 68.9 x 18.26
mm) |
