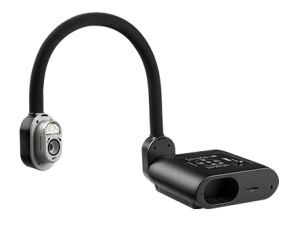

F17+
13M, 23X total zoom and image streaming via HDMI visualizer (document camera)
AVerVision F17+ is a visualizer suitable for every classroom. Its 13-megapixel camera delivers 4K image quality, letting you easily present teaching material with its 23X zoom. Helping to inspire students’ limitless creativity through hybrid interactive learning has never been easier than with the F17+.
Beautiful Image Quality
The 13-megapixel camera combined with its 23X total zoom allows you to display your teaching material in a brilliant manner and lets students push their boundaries of imagination.
360-degree Flexible Arm
Bend and adjust the gooseneck however you want to always find the best viewing angle of people and teaching materials.
Image Streaming in 4K Quality
Present your teaching materials to the class with 4K resolution video quality via HDMI connectivity from your device to the display.
Ideal for Hybrid Learning
F17+ is the right fit for hybrid classrooms. With a single button to snapshot and record, F17+ can instantly make any teaching materials digital and interactive. Furthermore, teachers can also use the F17+ as an USB camera to start online teaching right away.
Included AVerTouch Software Enhances Remote Teaching
Powerful AVerTouch software exclusively designed for AVer visualizers comes included. One touch connects your visualizer with your computer for easy content sharing, and cloud sync support offers automatic annotation, capture, and recording backup. AVerTouch engages students online and offline.
Specifications
Image sensor: 1/3.06" CMOS color image sensor
Total pixels: 13M
Output resolution: HDMI: 4K at 60 / 30Hz, Full HD 1080p at 60Hz, HD 720p at 60Hz
VGA: Full HD 1080p at 60Hz, HD 720p at 60Hz
TV lines: 1,500 (max.)
Zoom: 23X Digital Zoom
Frame rate: 60fps (max.)
Focus: Auto / Manual
Shooting area: Larger than A3 landscape
Image rotation: 0° / 180°
Internal storage: 200 Pictures at XGA (1024 x 768)
External storage: SDHC Card &USB Thumb Drive (Up to FAT32 / 32 GB)
One-touch recording: Yes
One-touch capturing: Yes
Image effects: Colour / B& / Negative
Display modes: Normal / Motion / High Quality
Capture modes: Single / Continuous
User profiles: Yes, up to 3
Timer: Yes
Flicker filter control: Yes
ePTZ: Yes
Light source: Embedded LED lamp
Connectivity
HDMI I/O: 1 in; 1 out
VGA I/O: 1 in; 1 out
USB 2.0 ports: Type-A x 1 (USB Thumb Drive), Type-C x 1 (PC)
Audio: Line out (3.5 mm), Mic in (3.5 mm), Built-in Mic
Security: Kensington Slot
Operational
Dimensions (W x D x H): Operating: 200 x 380 x 525 mm, Folded: 230 x 305 x 73 mm
Net weight: 2.5 kg (5.51 lbs)
Power source :DC 12V / 2A, AC 100 to 240V, 50 / 60Hz
Power consumption: 10 Watts (Lamp on); 9 Watts (Lamp off)
Warranty: Visualizer: 5 Years; Accessories: 1 Year
Software: AVerTouch, Sphere Lite
Windows® OS: Windows® 7, 10, 11
Mac® OS: macOS® X 10.15, 11, 12
Chromeâ„¢ OS: Chromeâ„¢ OS 88 or later (Available via the Sphere Lite App only)
Package contents
AVerVision F17+
USB Type-A to Type-C Cable
VGA Cable
Power Adapter
Remote Control
Quick Start Guide
