V11H928053 | Epson EH-TW9400 2600 Lumens 4K PRO UHD Enhancement Home

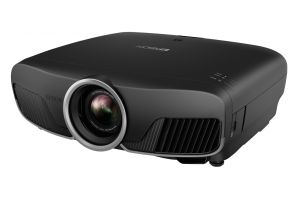

Epson EH-TW9400 2600 Lumens 4K PRO UHD Enhancement Home Theatre Projector

Home Theatre Projectors
Projection perfected with 4K experience

4K PRO UHD
Experience a new type of 4K home theatre projection technology from Epson with proprietary dedicated processors for resolution enhancement1, HDR, and image processing. 4K PRO-UHD home theatre projectors faithfully display all your favourite content from the classics to the latest blockbusters. This isn't just a new way to watch movies — it's the best way.

3LCD Technology
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD’s 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.

Amazing colour brightness with Epson
Brilliant image quality requires high colour brightness (colour light output). EH-TW9400, powered by 3LCD technology, is capable of producing White Light and Colour Light Output of 2,600 lumens in 4K enhancement resolution, delivering amazing colour brightness.

Wide Colour Space
Enjoy brilliant, colour rich performance. DCI-P3 which is the standard in digital cinema is available in the EH-TW9400, displaying 100% of the colour gamut. This extreme colour performance of DCI-P3 is 50% wider than typical 1-Chip Rec.709 projectors and allows for a truly professional-level of colour accuracy.

Dedicated 4K Enhancement Processor
Advanced 4K enhancement hardware precisely controls three-individual high-definition LCD chips to parallel process up to 12 million pixels of information. This new type of resolution enhancement technology results in a 4K visual experience – surpassing other forms of 4K home theatre projection.

Dedicated HDR Processor
A High Dynamic Range expands the range of colour and contrast that can be reached, resulting in a more realistic and natural image. Epson's full 10-bit HDR colour processing accepts 100% of the HDR source information to faithfully reproduce HDR content for an exceptional visual performance.

Dedicated Digital Imaging Processor
Real-time 12 bit analogue to digital video processing ensures smooth tonal transition, while eliminating banding, blocking and other compression artefacts from the final visual performance. The powerful processor in the EH-TW9400 faithfully reproduces the source material the way it was intended to be shown.

Rich Black Contrast
With Epson’s innovative auto iris, the EH-TW9400 home theatre projectors boast exceptional performance with contrast ratios 1,200,000:1 for mesmerising dark scenes, bringing your favourite movies to life.

Super Resolution with Detail Enhancement
Super-resolution defines edges for standard and HD content, while Detail enhancement refines surface detail for true-to-life images.

Frame Interpolation
Frame interpolation technology inserts multiple new frames between the original ones, so motion appears smoother, sharper and more realistic.

Precision Cinema Lens
The EH-TW9400 precision cinema lenses feature a unique 15-element Aspheric Glass Structure (AGS) that shifts the focal plane to the inside of the lens structure itself. Not only does this ensure surface dust is not visible on the final projected image but provides outstanding overall brightness and focus uniformity.

Lens Memory
Fast, quiet and precise, pre-set up to 10 positions for motorised zoom, focus and lens shift for both standard projection and wide cinema ratios. Project 2.35, 1.85 and 1.78 aspect ratios on the same screen without an anamorphic lens — and no downtime when switching between ratios. Watch movies on a grander scale at the touch of a remote button, without any disruptive black bars.

Powered Lens Shift
Epson's advanced projection technology enables a wide range of motorised lens shift capabilities for outstanding installation flexibility. The EH-TW9400 has an incredible range of up to ±96% on the vertical axis and up to ±47% on the horizontal axis. Users can operate the lens shift functions using the remote control, the projector control panel, or control commands.

Efficient Cooling System
When it comes to home cinema, you want to focus on what's in front of you - and nothing else, that's the idea behind the innovative, efficient cooling system of the EH-TW9400. With noise levels as low as 20 dB, this is among the quietest projectors in the industry. It’s time to enjoy engaging cinema without distraction - all the better for those moments when the picture takes your breath away.

PRODUCT NAME	EH-TW9400
PRODUCT CODE	V11H928053
WHAT'S IN THE BOX
TECHNOLOGY
Projection System	RGB liquid crystal shutter projection system
LCD Panel	0.74-inch wide panel with MLA (C2 Fine, 12 bit, OD)
Pixel Number	2,073,600 dots (1920 x 1080)
Resolution	4K Enhancement* 1920 x 1080 x 2
OPTICAL
Zoom	1 - 2.1 (Optical)
Screen Size	50" to 300" [1.48 to 9.08 m] (Zoom: Wide) 50" to 300" [3.13 to 18.99 m] (Zoom: Tele)
Projection Distance	100" screen 3.0 - 6.3 m
Throw Ratio	1.35 (Zoom: Wide), 2.84 (Zoom: Tele)
Projection Lens F Number	2.0-3.0
Projection Lens Focal Length	22.5mm - 46.7mm
Focus Method	Powered
Colour Light Output	2,600 Lumens
White Light Output	2,600 Lumens
Native Aspect Ratio	16:9
Contrast Ratio	1,200,000:1
Lamp Type	250 W UHE
Colour Reproduction	Up to 1.07 billion colours
Colour Processing	10 bit (12 bit Digital Colour Processing)
Keystone Correction	Vertical: -30 to +30 degrees Horizontal: N/A
Lens Shift (Powered)	Vertical: -96.3% to +96.3% Horizontal: -47.1% to +47.1%
CONNECTIVITY
Input: Digital	2 x HDMI (1 x HDCP2.2)
Input: Computer	1 x D-sub 15-pin (RGB)
Input: Opt. HDMI	1 x USB A
Input: Control	1 x RS232c
Input: Network I/O	1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
Trigger Out	3.5 mm mini-jack
Wireless Connectivity	Optional
ADVANCED FEATURES
WirelessHD	No
Super Resolution	Yes
High Dynamic Range - HDR10	Yes
Hybrid Log Gamma - HLG	Yes
Image Enhancement	Yes
Frame Interpolation	Yes
4K Enhancement	Yes
3D Formats	Top-and-Bottom, Side-by-Side
2D to 3D Conversion	No
Internal Speakers	No
Picture in Picture	No
Direct Power On	Yes
Security	Kensington®-style lock provision
Aspect Modes	Yes (Auto / Normal / Full / Zoom / Anamorphic Wide / Horiz.Squeeze)
Colour Modes	2D: Dynamic, Bright Cinema, Natural Cinema, Digital Cinema 3D: 3D Dynamic, 3D Cinema
GENERAL
Dimensions D x W x H	450 x 520 x 192.7 mm
Weight	11.2kg
Lamp Warranty	3 Years
Projector Warranty	3 Years
Power Consumption: Lamp on	298 W
Power Consumption: Standby	2 W
Noise Level (Normal/Eco)	31/20 dB
