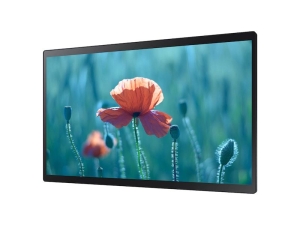

Samsung LH24QBRBBGCXZA QB24R-B 24" FHD Commercial Screen
Overview
- 24" FHD display with 10-point multi-touch functionality provides a
user-friendly experience.
- Compact and slim design enables efficient use of space.
- Embedded MagicINFO S player supports seamless content
playback.
Small spaces hold sizable opportunities
Get the most out of every space with Samsung QBR-B small digital signage.
Full HD resolution means every message will be sharp and crystal-clear, making
these brilliant displays ideal for retail environments, meeting rooms and public
spaces. An embedded media player (SoC) lets you easily display content with no
external PC required.
Crisp and visible content
Samsungs QB24R-B is enhanced by a non-glare panel that always delivers clear
images and text regardless of any ambient light. This essential feature is
supported by reliable 16/7 operation, suitable for professional
use.
Slim design
The compact and slim design of the QB24R-B allows for efficient space
utilization, even in compact locations. A sleek rear design makes the display
optimal for wall mounting while the connectivity, content play and device
controls are easy to operate.
Powerful all-in-one digital signage solution
MagicINFO S player, backed by TIZEN, requires no separate PC, extra mounting
or cabling, and no additional external hardware/maintenance. Just plug in the
displays and go.
Robust content management and monitoring
Our leading-edge digital signage platform makes content management easier,
more flexible and more robust. Use the data capture tools to inform content
creation and automated, targeted distribution. Easily create content with
included templates. And manage it all from a single source (license
required).
Comprehensive security setup
The powerful Knox security system provides rigid, three-layer security,
offering airtight protection at the application, platform and system level while
restricting access to content and hardware. In addition, remote control of the
network and USB ports prevents any unauthorized access.
Specifications
|
Series
Name |
|
|
Series
Name |
QBR-B
Series 24" |
|
Display |
|
|
Screen
Size |
24" |
|
Resolution
|
1920
x 1080 |
|
Brightness |
250nits |
|
Contrast
Ratio (Typical) |
1000:01:00 |
|
Contrast
Ratio (Dynamic) |
4,000:1 |
|
Viewing
Angle (H/V) |
178/178 |
|
Response
Time |
14ms(Typ.) |
|
Operation
Hours |
16/7 |
|
Pixel
Pitch (mm) |
0.2745
x 0.2745 |
|
Active
Display Area (mm) |
527.04
(H) x 296.46 (V) |
|
Display
Colors |
16.7
M (real 6bit, dither 8bit) |
|
Color
Gamut |
72% |
|
H-Scanning
Frequency |
56
~ 84.5kHz |
|
V-Scanning
Frequency |
48
~ 75HZ |
|
Maximum
Pixel Frequency |
594MHz |
|
Haze |
25% |
|
Type |
ADS |
|
Non-Glare |
YES |
|
Connectivity |
|
|
Input |
RGB:N/A |
|
VIDEO:HDMI
1.4 (1) |
|
HDCP:HDCP2.2 |
|
AUDIO:
N/A |
|
USB
USB 2.0 x 1 |
|
Output |
AUDIO:Stereo
Mini Jack |
|
External
Control |
RS232C
(In) Thru Stereo Jack, RJ45 |
|
Power |
|
|
Power
Supply |
AC
100 - 240 V, 50/60 Hz |
|
Power
Consumption (Typical/Max) |
Typical:25 |
|
Max:38.5 |
|
Sleep
Mode: 0.5 |
|
BTU(Max):131.3 |
|
Power
Consumption (Standby) |
0.5 |
|
Type |
|
|
Internal |
Environmental
Conditions |
|
Operating
Temperature |
0~
40 |
|
Operating
Humidity |
10~80% |
|
Features |
|
|
Key |
Small
Signage Display, Slim &Light Signage with Built-in MagicInfo S6, SSSP
6.0 |
|
Special |
HARDWARE:
Temperature Sensor, Pivot Display, Clock Battery(168hrs Clock Keeping),
Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi |
|
SOFTWARE:
Auto Source Switching &Recovery,LFD Home UI, Button Lock, Hot key
option, Plug&lay (Initial Setting) |
|
Bluetooth |
Yes |
|
Speaker
Type |
Built-in
Speaker(10W + 10W) |
|
Storage |
8GB
(3.88GB Occupied by O/S, 4.12GB Available) |
|
Built-in
WiFi |
Yes |
|
Cisco
Certified |
Yes |
|
Orientation |
Landscape
/ Portrait |
|
System
On Chip |
Yes |
|
Touch |
|
|
Type |
ADS |
|
Internal
Player |
|
|
Processor |
Cortex
A72 1.7GHz Quad-Core CPU |
|
On-Chip
Cache Memory |
L1
Instruction Cache :48KB |
|
L1
Data Cache :32KB |
|
L2
Cache:2MB |
|
Clock
Speed |
1.7GHz |
|
Main
Memory Interface |
2.5GB |
|
LPDDR4
1.5GHz 64bit |
|
Graphics |
Graphic
resolution:1920x1080 |
|
Output
resolution :3840x2160(Scale up from graphic processing
result.) |
|
Multimedia |
Video
Decoder:MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC,
JPEG, PNG, VP8, VP9 |
|
Audio
Decoder : AC3 (DD), MPEG |
|
IO
Ports |
USB
2.0 |
|
Operating
System |
Tizen
4.0 (VDLinux) |
|
Dimensions |
|
|
Without
Stand (W x H x D) |
547.9x334.4x31.8 |
|
Packaging
(W x H x D) |
620x419x122 |
|
Bezel
Width |
17.9mm(U/B),
9.4mm(L/R) |
|
Weight |
|
|
Product
Weight |
30kg |
|
Package
Weight |
4.1kg |
|
Accessories |
|
|
Included
in Box |
Quick
Setup Guide, Warranty Card, Power Cord, Remote Controller,
Batteries |
|
Mechanical
Specs |
|
|
VESA
Mount |
100x100 |
|
Certification
|
|
|
Safety |
60950-1 |
|
EMC |
Class
B |
|
Environment |
ENERGY
STAR 8.0,Epeat |
|
Security
|
802.1x(WPA2
Enterprise):EAP-TLS, EAP-TTLS,
EAP-PEAP |
