All stock codes associated to this product
VE66DTH-AT-U, S114104

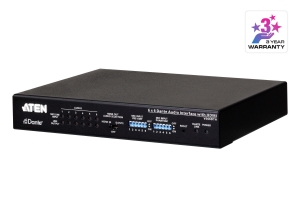

Aten VE66DTH 6 x 6 Dante Audio Interface with HDMI
Overview
ATEN VE66DTH is a Dante-enabled sixinput/sixoutput Audio Interface with HDMI.
Using Dante the most popular audio networking solution created by Audinate, the
VE66DTH is capable of delivering uncompressed, close-to-zero latency digital
audio signals across your standard IP network. The VE66DTH transmits and
receives up to 6-channel of audio inputs and outputs via a Dante network the
audio inputs can support not only the line input but also the dynamic and
condenser microphones at the same time. Additionally, the device can also
provide condenser microphones with 48V Phantom power supply. With its built-in
PoE (Power over Ethernet), the VE66DTH can be powered by a compatible PSE device
through Ethernet cable. Moreover, the VE66DTH provides flexible audio capability
with audio de-embedding and embedding. It can de-embed HDMI stereo audio signals
to the Dante networking system and embed Dante audio signals into the HDMI
output.
The VE66DTH is tailor-made to a wide range of environments, such as
conference centers, concert halls, entertainment facilities or wherever that
requires implantation of Dante-based professional audio devices for extended and
flexible networked AV applications. Users of the VE66DTH can benefit from
improved system performance, reduction in cabling and more to installations of
all sizes.
- Features Dante networked audio interface a complete audio networking
solution that distributes uncompressed, multi-channel audio transmission via
standard Ethernet networks, with near-zero latency and perfect
synchronization
- Integrates up to 6-channel balanced mono audio Line/Mic input signals onto
a Dante-enabled audio system and supports both dynamic and condenser
microphones
- Provides 48V Phantom power supply to condenser microphones
- AES67 support
- Easy to use and set up User can use Dante Controller for the simple
setup
- Delivers up to 6-channel balanced mono audio Line outputs from the Dante
network to the audio system
- Supports HDMI 2.0 input with HDCP 2.2 compliant the HDMI input can
de-embed HDMI stereo audio to the Dante network
- Supports HDMI 2.0 local output the VE66DTH can embed the Dante audio into
HDMI output
- Supports PoE power can be supplied by a compatible PSE device through
Ethernet cable
