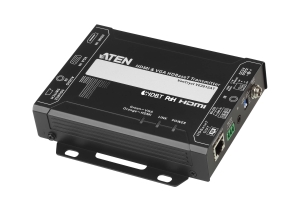

Aten VE2812AT HDMI & VGA HDBaseT Transmitter with POH function
(4K@100m) (HDBaseT Class A) (PoH PD)
Overview
The VE2812AT can transmit HDMI or VGA (combined audio) signals up to 100
meters via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE2812AT has
built-in PoH (Power over HDBaseT) function, power can be supplied through the
HDBaseT output port of the connected device, so there is no need to use an
additional power transformer, which can effectively reduce the cost of power
configuration, and save users from having to configure the power supply behind
the wall Trouble with lines. The HDMI specifications supported by the VE2812AT
include 3D, Deep Color and Distortion-Free Audio. In addition, VE2812AT supports
long-distance mode, can extend HDMI signal up to 150 meters, and the resolution
can reach 1080p.
In terms of practicality and convenience, when connecting two sources (HDMI
or VGA), the VE2812AT can be used as a switch, providing users with the
possibility to use more sources. VE2812AT is recommended to be used with VE2812R
. VE2812R supports IR and RS-232 control signal transmission, and VE2812AT can
receive RS-232 commands from VE2812R , allowing users to remotely control
VE2812AT with VE2812R through mode switching. This solution is suitable for
deployment in conference rooms, digital classrooms or any environment that
requires higher video resolution.
- Extend HDMI or VGA signal to provide high-definition video
resolution:
- Through a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable, can transmit 4K/1080p
HDMI signal up to 100 meters
- Through a Cat 5e/6 /6a or ATEN 2L-2910 Cat 6 cables can transmit 1600 x
1200 and 1920 x 1200 VGA signals up to 100 meters
- HDMI (3D, Deep Color, 4K); HDCP Compliant
- Support HDBaseT Long Reach (long reach) mode, can transmit 1080p signal up
to 150 meters through a Cat 5e/6 cable
- Built-in PoH (Power over HDBaseT) function VE2812ATs power can be supplied
through the HDBaseT output port of the connected device
- Auto-detect switch function VE2812AT will automatically detect and switch
to the latest connected source
- The VE2812AT can be used as a switcher or converter:
- Switcher: when connecting two sources (HDMI or VGA)
- Converter: when the receiver and VE2812AT have different interfaces (eg:
DVI, DisplayPort or HDMI)
- Bi-directional RS-232 channel connects to serial terminals or serial
devices such as touchscreens and barcode scanners
- Compatible Receivers VE2812R , VE1812R , VE811R , VE814AR , VE801R ,
VE802R , VE601R , VE901R or any ATEN HDBaseT Receiver
- Plug and Play no software to install
- Built-in 8KV/15KV ESD electrostatic protection
- Rack design
