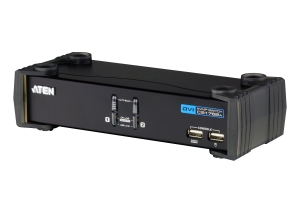

Aten CS1762A 2-Port USB DVI/Audio KVMP Switch
Overview
The CubiQ CS1762A USB 2.0 DVI KVMP Switch charts a revolutionary new
direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2
port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an
interface for a digital monitor (DVI).
In addition, the CS1762A comes with ATEN's new Video DynaSync technology,
which optimizes display resolution, and power on detection, which means if one
computer is powered off, the CS1762A will automatically switch to the next
powered-on computer.
As a KVM switch, it allows users to access two computers from a single USB
keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each
computer to access any peripherals connected to the hub on a 'one computer at a
time' basis.
- One USB console controls two DVI computers and two additional USB 2.0
devices
- 2-port USB 2.0 hub built in
- Fully compliant with the USB 2.0 specification
- Computer selection via front panel pushbuttons, hotkeys, and
mouse
- Audio enabled full bass response provides a rich experience for 2.1
channel surround sound systems
- Multiplatform support Windows, Linux, Mac, and Sun
- Supports widescreen resolutions
- Superior video quality 1920 x 1200
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support fully compliant with the DVI
specifications
- HDCP compatible
- Video DynaSync exclusive ATEN technology optimizes display resolution and
eliminates boot-up display problems
- Power on detection if one computer is powered off, the switch will
automatically switch to the next powered-on computer
- Console mouse port emulation/bypass feature supports most mouse drivers
and multifunction mice
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation*
- Multilingual keyboard mapping supports English, Japanese, and French
keyboards
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
Specifications
|
Computer
Connections |
2 |
|
Port
Selection |
Hotkey,
Pushbutton, Mouse |
|
Connectors |
|
Console
Ports |
2
x USB Type A Female |
|
1
x DVI-I Female (White) |
|
1
x 3.5mm Audio Jack Female (Green) |
|
1
x 3.5mm Audio Jack Female (Pink) |
|
KVM
Ports |
2
x USB Type B Female |
|
2
x DVI-I Female (White) |
|
2
x 3.5mm Audio Jack Female (Green) |
|
2
x 3.5mm Audio Jack Female (Pink) |
|
Power |
1
x DC Jack |
|
USB
Hub |
2
x USB Type A Female (rear panel) |
|
Switches |
|
Selected |
2
x Pushbutton |
|
LEDs |
|
USB
Link |
2
(Green) |
|
On
Line /Selected |
2
(Orange) |
|
Emulation |
|
Keyboard
/ Mouse |
USB |
|
Video |
1920
x 1200 @ 60Hz |
|
Scan
Interval |
199
seconds (default: 5 sec.) |
|
Power
Consumption |
DC5.3V:3.78W:43BTU |
|
Environmental |
|
Operating
Temperature |
0
- 50C |
|
Storage
Temperature |
-20
- 60C |
|
Humidity |
0-80%
RH, Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.73
kg ( 1.61 lb ) |
|
Dimensions
(L x W x H) |
21.00
x 8.80 x 5.55 cm |
|
(8.27
x 3.46 x 2.19 in.) |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
