All stock codes associated to this product
VC880-AT-U, VC880ATU

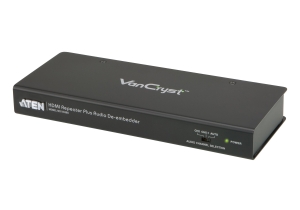

Aten VC880 HDMI Repeater Plus Audio De-embedder
Overview
The VC880 is an HDMI Repeater with an added audio de-embedder that extracts
and converts the audio signal from the HDMI input. This means that as well as
the repeated HDMI audio and video signal output, users can also choose between
analog stereo audio via RCA connectors or digital audio via optical or coaxial
connectors as an additional high quality audio output. With support for 3D TV
formats, the VC880 is ideal for users who want to enjoy high defi nition video
with their choice of high defi nition audio output on TVs, projectors, A/V
receivers or speakers.
- Repeats HDMI input signal up to 15 meters
- Extracts HDMI audio signal and outputs as additional audio
source
- Supports optical / coaxial digital audio and analog stereo
audio*
- HDCP 1.1 compatible
- Superior Video Quality up to 1920x1080 (1080p)
- Firmware upgradable
- CH2/CH5.1/Auto mode audio channel selection
- HDMI (3D)
- Supports Dolby True HD and DTS HD Master Audio
- Supports Audio on/off switch for HDMI output
- Expandable to three levels provides three levels of audio output for one
HDMI at distance up to 45 m
- Integrates with Apple TV for the perfect home entertainment system
Specifications
|
Video
Input |
|
Interfaces |
1
x HDMI Type A Female (Black) |
|
Impedance |
100
|
|
Max.
Distance |
3m
at 1920*1080@60 (4:4:4) |
|
Video
Output |
|
Interfaces |
1
x HDMI Type A Female (Black) |
|
Impedance |
100
|
|
Max.
Distance |
15m
at 1920*1080@60 (4:4:4) |
|
Video |
|
Max.
Data Rate |
6.75
Gps (2.25 Gbps Per Lane) |
|
Max.
Pixel Clock |
225
MHz |
|
Compliance |
HDMI
(3D, Deep Color) |
|
HDCP
Compatible |
|
Max.
Resolution |
Up
to 1920 x 1080 |
|
Audio |
|
Output |
1
x HDMI Type A Female (Black); |
|
1
x Toslink (Black); |
|
1
x RCA (Orange); |
|
2
x RCA (Red/White); |
|
Connectors |
|
Power |
1
x DC Jack |
|
Power
Consumption |
DC5.3V:2.25W:11BTU |
|
Environmental |
|
Operating
Temperature |
0
- 50 C |
|
Storage
Temperature |
-20
- 60 C |
|
Humidity |
0
- 80% RH, Non-Condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.46
kg ( 1.01 lb ) |
|
Dimensions
(L x W x H) |
20.00
x 8.20 x 2.50 cm |
|
(7.87
x 3.23 x 0.98 in.) |
|
Carton
Lot |
20
pcs |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
