All stock codes associated to this product
VC882ATU, VC882-AT-U, KVAVC882, KVA-VC-882

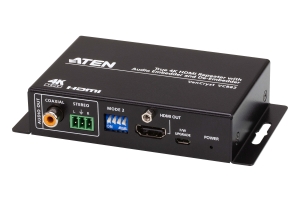

Aten VC882 True 4K HDMI Repeater with Audio Embedder and
De-Embedder
Overview
The VC882 is a True 4K HDMI Repeater with Audio Embedder and De-Embedder
capable of embedding or de-embedding the HDMI audio signal, while supporting the
HDMI signal transmission distance up to 5 meters with True 4K resolution. Apart
from embedding a separate audio to an outgoing HDMI signal, the VC882 also
allows audio extraction from the HDMI signal, and outputs the extracted signal
through an alternative audio system.
In terms of the audio aspect, the VC882 works with versatile pass-through of
HDMI audio formats LPCM2.0, Dolby Digital 2.0, Dolby Digital 5.1 and DTS Digital
5.1. The VC882 also supports ARC function which eliminates the need of bulky
cable setups when connecting an AV receiver, or a home theater system to a TV.
When it comes to the video aspect, the VC882 supports True 4K (4096 x 2160 @
60Hz 4:4:4) in HDR10, HDR10+, Dolby Vision and Hybrid Log-Gamma (HLG) formats to
provide staggeringly crisp images. It is HDCP 2.2-compliant for content
protection. The compact enclosure design, True 4K signal transmission, and
embedding / de-embedding capability have made the VC882 ideal for training and
conference rooms, video production, and home theater
installations.
- Embeds audio to the HDMI output or deembeds audio from the HDMI signal and
outputs the extracted signal through an alternative audio
system
- Easy embedding / de-embedding mode selection via 2 / 4-pin DIP
switches
- HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
- True 4K video quality supports resolutions up to 4096 x 2160 @ 60Hz
(4:4:4)
- Supports True 4K / HDR formats HDR10, HDR10+, Dolby Vision and Hybrid
Log-Gamma (HLG)
- Supports HDMI audio formats LPCM 2.0, Dolby Digital 2.0, Dolby Digital 5.1
and DTS Digital 5.1
- Compact, portable metal enclosure designed for HDMI
Lock-pro
- Firmware upgradable
Specifications
|
LEDs |
|
Power |
LED
(blue) x1 |
|
Reset
Button |
Push
button x1 (to activate mode configuration) |
|
Switches |
|
Mode
Selection |
MODE
1 (2-PIN) |
|
PIN#1
(Enable / Disable Audio Embedder Function) |
|
PIN#2
(Audio embed from Coaxial / Stereo) |
|
|
MODE
2 (4-PIN) |
|
PIN#1
(Enable / Disable Audio Extractor Function) |
|
PIN#2
(Enable / Disable ARC function) |
|
PIN#3&4
(EDID mode selection: Bypass, 5.1 CH, 2 CH,
Learn) |
|
Video
Input |
|
Interfaces |
1
x HDMI Type A Female (Black) |
|
Impedance |
100
|
|
Max.
Distance |
5
meters |
|
Video
Output |
|
Interfaces |
1
x HDMI Type A Female (Black) |
|
Impedance |
100
|
|
Max.
Distance |
5
meters |
|
Video |
|
Max.
Data Rate |
18
Gps |
|
Max.
Pixel Clock |
600
MHz |
|
Compliance |
HDMI
2.0 (3D, Deep Color) |
|
HDCP
2.2 |
|
Max.
Resolution |
4096
X 2160@60Hz(4:4:4) 8 bit |
|
Audio |
|
Output |
Coaxial
x1 |
|
Format:
LPCM2.0, Dolby Digital 2.0, Dolby Digital 5.1, DTS Digital
5.1 |
|
3-pin
terminal block x 1 |
|
Format:
Analog, stereo, unbalanced, LPCM2.0 |
|
Input |
Coaxial
x1 |
|
Format:
LPCM2.0, Dolby Digital 2.0, Dolby Digital 5.1, DTS Digital
5.1 |
|
3-pin
terminal block x 1 |
|
Format:
Analog, stereo, unbalanced, LPCM2.0 |
|
Connectors |
|
Power |
1
x DC Jack, 5V 1A, Lockable |
|
Firmware
Upgrade |
1
x Micro USB |
|
Power
Consumption |
DC5V:2.905W:9.92BTU |
|
Environmental |
|
Operating
Temperature |
0
- 40 C |
|
Storage
Temperature |
-20
- 60 C |
|
Humidity |
0
- 80% RH, Non-Condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.24
kg ( 0.53 lb ) |
|
Dimensions
(L x W x H) |
12.22
x 8.22 x 2.50 cm |
|
(4.81
x 3.24 x 0.98 in.) |
|
Carton
Lot |
5
pcs |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
