All stock codes associated to this product
VE1801AEUT-AT-U, VE1801AEUTATU

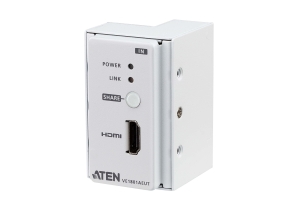

Aten VE1801AEUT HDMI HDBaseT-Lite Transmitter with EU Wall Plate /
PoH (PoH PD)
Overview
The ATEN VE1801AEUT HDMI HDBaseT-Lite transmitter delivers 4K signals up to
40 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable, ensuring users to
stabilize HDMI signal transmission with support of 3D, Deep color and embedded
HD lossless audio formats. During high-quality video transmission, the
transmitter can resist signal interference with the equipped HDBaseT
Anti-jamming technology and offer a reliable signal extension.
The VE1801AEUT can be easily mounted in a 1-gang junction box with EU wall
plate, concealing bulky cable setups and presenting needed information in sight.
In addition, with built-in PoH (Power over HDBaseT) function, the VE1801AEUT
receives power supply from a connected PoH PSE supported receiver and
streamlines complex power line deployment.
Expanding on previous models by the share function, the VE1801AEUT can
remotely switch source when connecting to a compatible receiver, e.g., VP1421,
bringing users for more convenient AV extension. This compact transmitter
provides a neat and simple installation on walls or tables, enabling users to
elegantly immerse their AV applications into any environment. Therefore, the
VE1801AEUT is ideal for use in meeting rooms, digital educational environments
or any application requiring stable high-quality transmission and effortless
installation.
- Extends HDMI signals with superior video quality over a single Cat 5e/6/6a
cable or ATEN 2L-2910 Cat 6 cable
- 4K up to 40 m
- 1080p up to 70 m
- Built-in PoH (Power over HDBaseT) function the VE1801AEUT receives power
supply from the HDBaseT output port
- HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
- Designed to mount in a 1-gang junction box with EU wall
plate
- Supports RS-232 channel transmission
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to
communicate and respond to a single remote control
- HDBaseT Anti-jamming resists signal interference during high-quality video
transmission using HDBaseT technology
- Share function the VE1801AEUT can remotely switch source when connecting
to a compatible receiver, e.g., VP1421
- LED indication of device status
- Supports wide screen format
- Built-in 8KV / 15KV ESD protection
- Plug-and-play
Specifications
|
Video
Input |
|
Interfaces |
1
x HDMI Type A Female (Black) |
|
Impedance |
100 |
|
Max.
Distance |
3
m |
|
Video |
|
Max.
Data Rate |
10.2Gbps
(3.4Gbps per lane) |
|
Max.
Pixel Clock |
340
MHz |
|
Compliance |
HDMI
(3D, Deep Color, 4K) |
|
HDCP2.2
Compatible |
|
Consumer
Electronics Control (CEC) |
|
Max.
Resolutions / Distance |
Up
to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910
Cat6); |
|
1080p@60m
(Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) |
|
*4K
supported: |
|
4096
x 2160 / 3840 x 2160 @ 60Hz (4:2:0); |
|
4096
x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
|
Audio |
|
Input |
1
x HDMI Type A Female (Black) |
|
Control |
|
RS-232
Channel |
1
x Terminal Block (3 pole, TX/RX/GND, Green) |
|
Contact
Out |
1
x Terminal Block (2 pole, DO/GND, Green) |
|
Connectors |
|
Unit
To Unit |
1
x RJ-45 Female |
|
Power |
1
x Terminal Block (2 pole, +5V/GND, Green) or |
|
1
x RJ-45 Female (POH) |
|
Power
Consumption |
DC5V:3.26W:15BTU |
|
POH:4W:19BTU |
|
Environmental |
|
Operating
Temperature |
0
- 40C |
|
Storage
Temperature |
-20
- 60C |
|
Humidity |
0%
- 80% RH, Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.20
kg ( 0.44 lb ) |
|
Dimensions
(L x W x H) |
6.86
x 4.44 x 5.00 cm |
|
(2.7
x 1.75 x 1.97 in.) |
|
Faceplate
Dimensions (L x W x H) |
8.60
x 8.60 x 1.60 cm |
|
(3.39
x 3.39 x 0.63 in.) |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
