All stock codes associated to this product
VE601R-AT-U, VE601RATU

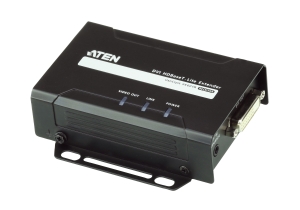

Aten VE601R DVI HDBaseT-Lite Receiver (1080p@70m) (HDBaseT Class
B)
Overview
The VE601R DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up
to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology
even supports sharing 1920 x 1200 media up to 40 m away, offering a simple,
adaptable, and cost-effective solution for any professional A/V
installation.
The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional
A/V installations that require video signal interference protection, such as in
medical and military installations. With its lightweight and easy-to-mount
design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be
installed nearly anywhere while ensuring peace of mind with its unerring
reliability.
* Compatible HDBaseT Transmitter Units: VE601T, VE801T
- HDBaseT Connectivity extends a DVI 1080p connection up to 70 meters via a
single Cat 6a/ATEN 2L-2910 Cat 6 cable
- DVI (3D, Deep color); HDCP 1.4 compliant
- Superior video quality 1920 x 1200@35m (Cat 5e/6) / 40m (Cat 6a);
1080p@60m(Cat 5e/6) / 70m (Cat 6a)
- HDBaseT Anti-Jamming resists signal interference during video transmission
using HDBaseT technology
- Plug-and-play
- Rack-mountable
Specifications
|
Video
Output |
|
Impedance |
100
|
|
Interfaces |
1
x DVI-D Female (White) |
|
Video |
|
Max.
Pixel Clock |
340
MHz |
|
Max.
Data Rate |
10.2Gbps
(3.4Gbps per lane) |
|
Compliance |
DVI
(3D, Deep Color) |
|
HDCP
compatible |
|
Max.
Resolutions / Distance |
Up
to 1920 x 1200@35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910
Cat6); |
|
1080p@60
m (Cat 5e/6) / 70 m (Cat 6a/ATEN 2L-2910 Cat6) |
|
Connectors |
|
Power |
1
x DC Jack with locking |
|
Unit
To Unit |
1
x RJ-45 Female |
|
Power
Consumption |
DC5V:4.36W:20BTU |
|
Environmental |
|
Operating
Temperature |
0-50C |
|
Storage
Temperature |
-20
- 60C |
|
Humidity |
0%
- 80% RH, Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.25
kg ( 0.55 lb ) |
|
Dimensions
(L x W x H) with bracket |
10.20
x 8.70 x 3.00 cm |
|
(4.02
x 3.43 x 1.18 in.) |
|
Dimensions
(L x W x H) without bracket |
9.42
x 6.60 x 2.90 cm |
|
(3.71
x 2.6 x 1.14 in.) |
