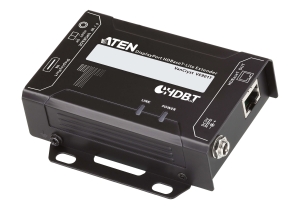

Aten VE901T DisplayPort HDBaseT-Lite Transmitter (4K@40m;
1080p@70m)
Overview
The VE901T DisplayPort HDBaseT-Lite Transmitter is able to extend a
DisplayPort display up to 70 m using a Cat 6/6a/ATEN 2L-2910 Cat 6 cable. This
combination of ATEN and HDBaseT technology supports sharing 4K media up to 40 m
away, offering a simple, adaptable, and cost-effective solution for any
professional A/V installation.
The VE901T DisplayPort HDBaseT-Lite Transmitter is the perfect choice for
professional A/V installations that require video signal interference
protection, such as in medical and military installations. With its lightweight
and easy-to-mount design, and a slip-resistant DC Jack lock mechanism, the
VE901T can be installed in a multitude of locations while ensuring peace of mind
with its reliability.
- HDBaseT Connectivity extends a DisplayPort connection up to 70 meters via
a single Cat 6a cable or ATEN 2L-2910 Cat 6 cable
- DisplayPort v1.1*; HDCP 1.4 compliant
- Superior video quality 4K @ 35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910
Cat 6 cable) and 1920 x 1080 @ 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat 6
cable)
- HDBaseT Anti-Jamming resists signal interference during video transmission
using HDBaseT technology
- Featuring 3.3V / 500mA power output for powering auxiliary
devices
- Plug-and-play
- Rack-Mountable
*Note:
DisplayPort v1.1 supports up to 4Kx2K @ 30Hz.
Specifications
|
Video
Input |
|
Interfaces |
1
x DisplayPort Female (Black) |
|
Impedance |
100
|
|
Max.
Distance |
1.5
m |
|
Video |
|
Max.
Data Rate |
10.2Gbps
(3.4Gbps per lane) |
|
Max.
Pixel Clock |
297
MHz |
|
Compliance |
DisplayPort
(Deep Color, 4K) |
|
HDCP
Compatible |
|
Max.
Resolutions / Distance |
Up
to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910
Cat6); |
|
1080p@60m
(Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) |
|
*4K
supported: |
|
4096
x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
|
Audio |
|
Output |
N/A |
|
Input |
1
x DisplayPort Female (Black) |
|
Connectors |
|
Power |
1
x DC Jack (Black) with locking |
|
Unit
To Unit |
1
x RJ-45 Female |
|
Power
Consumption |
DC5V:2.84W:13BTU |
|
Environmental |
|
Operating
Temperature |
0-40C |
|
Storage
Temperature |
-20
- 60C |
|
Humidity |
0
- 80% RH, Non-Condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.24
kg ( 0.53 lb ) |
|
Dimensions
(L x W x H) with bracket |
9.77
x 8.70 x 3.00 cm |
|
(3.85
x 3.43 x 1.18 in.) |
|
Dimensions
(L x W x H) without bracket |
9.42
x 6.60 x 2.90 cm |
|
(3.71
x 2.6 x 1.14 in.) |
