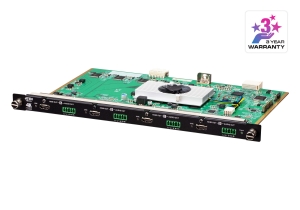

Aten VM8824 4-Port True 4K HDMI Output Board with Scaler
Overview
The VM8824 is a True 4K HDMI output board that works with an ATEN Modular
Matrix Switch to offer an easy way to route 4 analog/digital audio/video sources
to 4 HDMI displays with True 4K high-definition images support. In addition to
the HDMI interface that carries digital A/V signal, the VM8824 also provides 4
stereo audio output ports that enable HDMI audio extraction.
Considering video wall applications always require fast video switching and
resolution adaptation, the VM8824 supports Seamless Switch technology that
provides real-time video switching, a built in 4K scaler that handles different
video resolutions, and the EDID Expert technology for fast smooth switching
between displays. All of ATENs VM series input/output boards support
hot-swappable installation that gives system integrators great flexibility and
efficiency for maintenance. The VM series input/output boards along with ATEN
Modular Matrix Switches offer ideal solutions that perfectly meet your demands
for multi-interface video applications.
- Compatible with the VM Modular Matrix Switches; mix and match with modular
I/O boards of any type for optimum flexibility
- True 4K Resolutions handles uncompressed video resolutions up to 3840 x
2160 / 4096 x 2160 @ 60Hz (4:4:4)*
- 4K Scaler features a video scaling function to integrate a video wall
seamlessly with various output video resolutions
- Seamless Switch features close-to-zero second switching that provides
continuous video streams, real-time switching and stable signal
transmissions*
- Video Wall allows you to create custom video wall layouts via intuitive
web GUI*
- True 4K EDID Expert selects optimum EDID settings for smooth power-up,
high-quality display, and use of the best resolution across different
screens
- FrameSync prevents image tearing by synchronizing the scaler output frame
rate to the input signal frame rate
- Audio-enabled, HDMI audio can be extracted and stereo audio can be
embedded
- Cable Quality Tester examines the HDMI cable quality
- HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible
- Consumer Electronics Control (CEC) support
*Note:
1. True 4K resolutions are only supported when the VM7824 and VM8824 are used
with the VM3250.
2. When Seamless Switch is enabled, 3D, Deep Color, or interlace (i.e.1080i)
formats will not be supported. To use these formats, make sure to disable
Seamless Switch.
3. Videos may not display within range when Seamless Switch or Video Wall is
enabled, in which case please adjust the display settings on your device.
Specifications
|
Video
Output |
|
Interfaces |
4
x HDMI Type A Female (Black) |
|
Impedance |
100
|
|
Max.
Distance |
Up
to 5.0m |
|
Video |
|
Max.
Data Rate |
18.0
Gbps (6.0 Gbps Per Lane) |
|
Max.
Pixel Clock |
600
MHz |
|
Compliance |
HDMI
(3D, Deep Color, 4K) |
|
HDCP
2.2 Compatible |
|
Consumer
Electronics Control (CEC) |
|
Max.
Resolution |
4096x2160/3840x2160@60Hz
(4:4:4) |
|
Audio |
|
Output |
4
x Captive Screw Connector, 5 pole |
|
*
Audio signal type: stereo,
balanced/unbalanced. |
|
Power
Consumption |
38.97W:183BTU |
|
Environmental |
|
Operating
Temperature |
0
- 40C |
|
Storage
Temperature |
-20
- 60C |
|
Humidity |
0
- 80% RH, Non-Condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.65
kg ( 1.43 lb ) |
|
Dimensions
(L x W x H) |
35.20
x 23.80 x 2.33 cm |
|
(13.86
x 9.37 x 0.92 in.) |
|
Carton
Lot |
2
pcs |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
