Overview

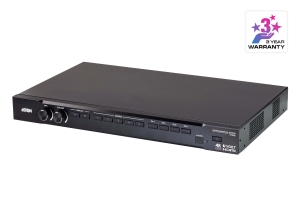

The ATEN VP3520 is a multi-in-one presentation matrix switch that integrates
a video matrix switch, 4K scaler, HDBaseT extender, and audio DSP functions into
one compact device that easily mounts under a table or in a rack. The VP3520
seamless presentation matrix switch with control features the True 4K video
resolutions of 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) and HDR technology,
guaranteeing crystal-clear images across two displays. The VP3520 supporting 4K
@ 60 Hz, HDMI, and HDCP 2.2 features Seamless Switch that employs an FPGA matrix
architecture that ensures continuous video streams, real-time control, and
stable signal transmissions. With a built-in high-performance 4K scaler, the
VP3520 easily converts various input resolutions into various output display
resolutions, giving viewers the best video and picture quality across the two
displays.
With flexible audio de-embedding, the VP3520 is designed with the audio
routing flexibility to meet different application requirements. In a simple
setup, HDMI audio can be connected and switched directly to display audio. For a
more complex setup, the HDMI audio can be de-embedded to Audio Line Out in order
to connect to your preferred in-room audio equipment. Equipped with 5 digital
inputs to one HDBaseT and one HDMI True 4K separate outputs, the VP3520 enables
users to control 2 displays at the same time and is designed to boost the
efficiency and impact of professional presentations. The VP3520 provides users
with the flexibility of using both active and passive speakers with its stereo
line out port, coaxial port, and 2 x 10 W power amplifiers.
As for the control functions, the VP3520 offers users multiple control
options through the front-panel pushbuttons, IR remote control, RS-232 commands,
web-based GUI, and ATEN Video Presentation Control App. Moreover, the VP3520
enables the control over AV devices such as TV displays, projectors, and
monitors. It is ideal for all meeting spaces and education environments,
including huddle rooms, classrooms, training rooms, or any other presentation
setting such as exhibition galleries or hotels.
Specifications
|
Video
Input |
|
Interfaces |
3
x HDMI Type A female (Black) |
|
2
x HDBaseT (RJ-45) Female (Silver) with PoH |
|
Max.
Distance |
HDMI:
4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at
15m |
|
HDBaseT:
4K@30Hz at 35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910
Cat6); |
|
1080p@60Hz
at 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910
Cat6) |
|
Video
Output |
|
Interfaces |
1
x HDMI Type A female (Black) |
|
1
x HDBaseT (RJ-45) Female (Silver) with PoH |
|
Max.
Distance |
HDMI:
4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at
15m |
|
HDBaseT:
4K@30Hz at 35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910
Cat6); |
|
1080p@60Hz
at 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910
Cat6) |
|
Video |
|
Max.
Resolution |
HDMI:
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
|
HDBaseT:
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0) ; Up to 4096 x 2160 / 3840
x 2160 @ 30Hz (4:4:4) |
|
Compliance |
HDMI;
4K HDR |
|
HDCP
2.2 Compatible; Consumer Electronics Control
(CEC) |
|
Audio |
|
Output |
Line
Out (Unbalanced): 1 x Captive Screw Connector,
3-pole |
|
Digital
Audio: 1 x Coaxial |
|
Amplifier
out: 1 x Captive Screw Connector, 4-pole |
|
Input |
Stereo
Audio (HDMI/HDBT): 1 x mini stereo Jack female
(Green) |
|
Microphone:
1 x Captive Screw Connector, 3-pole (with selectable phantom
power) |
|
Control |
|
RS-232 |
1x
DB-9 Female (Black); VP device control &
configuration |
|
1
x Captive Screw Connector, 3-pole ; AV device
control |
|
IR |
1
x Mini Stereo Jack Female (Black); VP device
control |
|
1
x Captive Screw Connector, 2-pole; AV device
control |
|
Ethernet |
1
x RJ-45 Female (Silver); Support PJLink
protocol |
|
Interfaces |
|
Relay |
2
x Captive Screw Connector, 2-pole |
|
Switches |
|
Power |
1
x Pushbutton (LED: Green / Orange) |
|
1
x Slide Switch (+48V Phantom Power) |
|
Video
Input Port Selection |
5
x Pushbutton (LED: Green) |
|
Video
Output Port Selection |
2
x Pushbutton (LED: Orange) |
|
Selection |
Mic:
1 x Knob |
|
Volume:
1 x Knob |
|
Mode
/ Unlock: 1 x Pushbutton |
|
Function
keys: 4x Pushbutton |
|
EDID
Settings |
EDID
Mode: ATEN Default / Display A / Remix |
|
Connectors |
|
Power |
1
x 3-Prong AC Socket |
|
Power
Consumption |
AC110V:46.7W:314BTU |
|
AC220V:45.8W:310BTU |
|
Environmental |
|
Operating
Temperature |
0-40C |
|
Storage
Temperature |
-20
- 60C |
|
Humidity |
0
- 80% RH, Non-Condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
3.80
kg ( 8.37 lb ) |
|
Dimensions
(L x W x H) |
43.24
x 27.23 x 4.40 cm |
|
(17.02
x 10.72 x 1.73 in.) |
|
Carton
Lot |
3
pcs |
