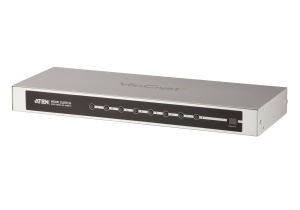

Aten VS0801H 8-Port HDMI Video/Audio Switch with IR Remote and
RS-232
Overview
With more and more HDMI devices entering the Home Theater market, the need
for simultaneous access to different HDMI A/V sources is becoming increasingly
important. Now, the VS0801H 8-port HDMI Switch offers an easy and affordable way
to add HDMI capabilities to your home theater system by allowing you to switch
easily between up to eight HDMI A/V sources (such as an HD camcorder or
satellite box, HD-DVD player, hi-def Blu-ray player, home theater PC,
stand-alone streaming media player, gaming console, etc.) that are connected to
your HDMI display.
The remote control and convenient front panel pushbuttons allow you to
quickly and easily toggle between HDMI sources, while the front panel LEDs
indicate the source device at a glance. Furthermore, for complete system and
install integration, RS-232 control is standard through the VS0801H's built-in
bi-directional RS-232 serial remote port that allows the switch to be controlled
through a high-end controller, PC, and/or home automation/home theater software
package.
- Allows up to eight HDMI sources to be connected to one HDMI
display
- Quick and easy switching between HDMI sources via front panel pushbuttons
or IR remote control
- Built-in bi-directional RS-232 serial port for high-end system
control
- Supports Dolby True HD and DTS HD Master Audio
- Up to 60 Hz refresh rate
- Long-distance transmission - up to 50 feet (15 m) (24 AWG)
- Superior video quality - HDTV resolutions of 480p, 720p, 1080i, 1080p
(1920x1080); VGA, SVGA, SXGA, UXGA, and WUXGA (1920x1200)
- Supports 12-bit Deep Color for HDMI formats
- Plug-and-play - no software installation required
- DDC compatible
- Supports 3D Video
- HDMI 1.3b / 1.4 (3D) Compatible
- HDCP 1.4 compliant
- HDMI CEC compliant
- Signaling rates up to 2.25 Gbps in support of 1080p
display
- All-metal casing
- Power On Detection - if one of the HDMI source devices is powered off, the
VS0801H will automatically switch to the next powered on
device
- Easy and affordable way to add eight HDMI inputs to your home theater
system
- Rack Mountable
Specifications
|
Video
Input |
|
Interfaces |
8
x HDMI Type A Female (Black) |
|
Impedance |
100
|
|
Max.
Distance |
3m
@1920X1080@60 (4:4:4) |
|
Video
Output |
|
Interfaces |
1
x HDMI Type A Female (Black) |
|
Impedance |
100
|
|
Max.
Distance |
15m
@1920X1080@60 (4:4:4) |
|
Video |
|
Max.
Data Rate |
6.75
Gbps (2.25 Gbps Per Lane) |
|
Max.
Pixel Clock |
225
MHz |
|
Compliance |
HDMI
(3D, Deep Color) |
|
HDCP
Compatible |
|
Consumer
Electronics Control (CEC) |
|
Max.
Resolution |
Up
to 1080p |
|
Audio |
|
Input |
8
x HDMI Type A Female (Black) |
|
Output |
1
x HDMI Type A Female (Black) |
|
Control |
|
RS-232 |
Connector:
1 x DB-9 Female (Black) |
|
Baud
Rate and Protocol: |
|
Baud
Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control:
No |
|
Connectors |
|
Power |
1
x DC Jack |
|
Power
Consumption |
DC5.3V:4.37W:20BTU |
|
Environmental |
|
Operating
Temperature |
0
- 50C |
|
Storage
Temperature |
-20
- 60C |
|
Humidity |
0
- 80% RH, Non-Condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
1.75
kg ( 3.85 lb ) |
|
Dimensions
(L x W x H) |
43.70
x 15.98 x 4.40 cm |
|
(17.2
x 6.29 x 1.73 in.) |
|
Carton
Lot |
3
pcs |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
