All stock codes associated to this product
EDA52-00AE61N21RK, EDA5200AE61N21RK

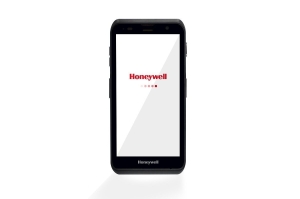

Honeywell EDA52 Handheld Computer
Overview
- ScanPalEDA52 is Honeywells next generation ScanPal series mobile computer
equipped with the latest Qualcomm Snapdragon octa-core 2.0GHz processor and
robust wireless connectivity through NFC, Wi-Fi5, Bluetooth5.1 and 4GLTE
communication.
- A prominent 5.5-inch Gorilla Glass touch screen interface and ergonomic
industrial design help to greatly improve user comfort and experience. Its
lightweight and slim design means that users can easily operate the device
with one hand, carry it in pockets, and stay comfortable all day.
- The 13-megapixel rear camera allows users to capture high-resolution
images for quality image documentation while the 5-megapixel front camera
allows users to engage in video communication.
- The EDA52 incorporates the all-new and powerful Honeywell S0703 scan
engine which enables fast reading even of damaged or incomplete
barcodes.
- Outfitted with a rugged housing and IP67 rated sealing, the EDA52 can
operate under rough usage and demanding environmental conditions. A 4500mAh
battery allows for prolonged and uninterrupted use between each charge. The
battery is also easily removable and supports quick charge 3.0.
- The EDA52 (WWAN version) supports one nano SIM and one e-Sim
simultaneously. An eSIM enables simple management of subscriptions to
different mobile network carriers, thereby allowing easy switch between
carriers without the need to manage multiple physical SIM cards.
- The EDA52 is built on Android11 and can be upgraded to Android13*
minimizing maintenance issues and ensuring long-term feature support. It is
validated under AER (Android Enterprise Recommended), a Google-led initiative
that helps businesses confidently select, deploy, and manage Android devices
and services best suited to their needs.
*Android 13 is pending for the confirmation from Qualcomm&Google
Specifications
|
FEATURES |
|
|
Application |
Retail,
transportation & logistics, manufacturing, healthcare, and public
service |
|
DIMENSIONS |
|
|
Overall
Dimensions |
159mm
x 75 mm x 14.4 mm (6.26 in x 2.95 in x 0.57
in) |
|
SCANNING
SPECIFICATIONS |
|
|
Decode
Capability |
Honeywell
S0703 Slim Imager (1D/2D barcode symbologies) |
|
NETWORK |
|
|
WLAN
Specifications |
Additional
WLAN Features: 802.11 d/e/h/i/k/ r/u/w |
|
WLAN
Supported EAP:TLS, PEAP, TTLS, PWD, LEAP |
|
Security:
OPEN, WEP, WPA/WPA2 (Personal and Enterprise WPA2), WPA3 (OWE, SAE,
Enterprise) |
|
WLAN
(Wi-Fi Alliance certified):802.11 a/b/g/n/ac |
|
Bluetooth
Specifications |
Bluetooth
Class 5.1 |
|
WWAN
Specifications |
TDD-LTE:
Bands 38, 39, 40, 41 |
|
FDD-LTE:
Bands 1, 2, 3, 4, 5, 7, 8, 9,
12,13,17,19,20,25,26,28,30,66 |
|
UMTS/HSPA+:
Bands 1, 2, 4, 5, 6,8, 9, 19 |
|
GSM/EDGE:
Bands 2, 3, 5, 8 |
|
GPS
Specifications |
GPS
(WWAN only) Supported Protocols: Simultaneous receiver support for GPS,
GLONASS, and BeiDou |
|
SOFTWARE
& FIRMWARE |
|
|
Operating
System |
Android
11, and upgradeable to Android 13 (Android 13 is pending for the
confirmation from Qualcomm & Google) |
|
MEMORY
& DATA |
|
|
Memory |
Storage
Expansion: MicroSD (up to 128 GB) |
|
HARDWARE |
|
|
Display
Size |
Gorilla
Glass 5, 5.5-inch |
|
Processor |
Qualcomm
Snapdragon SM6115, Quad high-performance Kryo cores 2.0 GHz +Quad
low-power Kryo cores 1.8 GHz |
|
Display
Resolution |
1440
x 720 High Definition |
|
Scan
Engine Model |
Honeywell
S0703 Slim Imager (1D/2D barcode symbologies) |
|
ELECTRICAL |
|
|
Battery
Capacity |
3.8
V, 4,500 mAh, removable |
|
Battery
Type |
Li-Ion |
|
ENVIRONMENTAL |
|
|
Operating
Humidity |
5%
to 90% (non-condensing) |
|
Cold
Storage |
Front
and Rear |
|
Operating
Temperature |
-20C
to +50C (-4F to +122F) |
|
STANDARDS
& APPROVALS |
|
|
Tumble
Specifications |
550
times at 0.5 m (1.64 ft) |
|
Drop
Specifications |
Multiple
1.3m (4.3ft) per MIL-STD 810G drops to concrete at room
temperature |
|
Multiple
1.5m (5ft) per MIL-STD 810G drops with rubber boot concrete at room
temperature |
|
OTHERS |
|
|
Durability |
Environmental
Sealing: IP67 |
|
Electrostatic
Discharge (ESD):8 kV direct; 15 kV air |
|
Camera
Position |
Rear
and Front |
