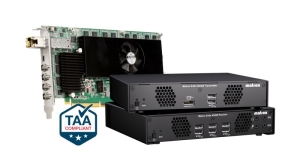

Connectivity |
|
|
|
Video
Input |
Transmitter
Appliance: |
|
|
|
3x
DisplayPort 1.1 |
|
|
|
1x
DisplayPort 1.2 |
|
|
|
Transmitter
Card: |
|
|
|
PCI
Express x8 electrical and x16 mechanical |
|
|
|
3x
mini DisplayPort 1.1 |
|
|
|
1x
mini DisplayPort 1.2 |
|
|
|
Video
Output |
Transmitter
Appliance: |
|
|
|
1x
DisplayPort 1.1 |
|
|
|
Receiver
Appliance: |
|
|
|
3x
DisplayPort 1.1 |
|
|
|
1x
DisplayPort 1.2 |
|
|
|
Link
Connector |
Transmitter
Appliance: |
|
|
|
1x
RJ45 network port |
|
|
|
1x
SFP cage (optional RJ45 or Fiber-optic
transceiver) |
|
|
|
Transmitter
Card: |
|
|
|
1x
RJ45 copper transceiver (option to replace with fiber-optic
transceiver) |
|
|
|
Receiver Appliance: |
|
|
|
1x
RJ45 network port |
|
|
|
1x
SFP cage (optional RJ45 or Fiber-optic
transceiver) |
|
|
|
USB
Ports |
Transmitter
Appliance: |
|
|
|
1x
USB 2.0 (Type B) |
|
|
|
Transmitter
Card: |
|
|
|
1x
Mini USB 2.0 (Type B) |
|
|
|
Receiver
Appliance: |
|
|
|
6x
USB 2.0 (Type A) |
|
|
|
Audio
Input |
Transmitter
Appliance: |
|
|
|
Line
in 3.5 mm |
|
|
|
Receiver
Appliance: |
|
|
|
Line
in 3.5 mm, mic in 3.5 mm |
|
|
|
Audio
Output |
Transmitter
Appliance: |
|
|
|
Line
out 3.5 mm |
|
|
|
Receiver
Appliance: |
|
|
|
Line
out 3.5 mm, headphone out 3.5 mm |
|
|
|
RS-232 |
Transmitter
Appliance: |
|
|
|
1x
9-pin D-type (female) |
|
|
|
Receiver
Appliance: |
|
|
|
1x
9-pin D-type (male) |
|
|
|
Bus
Interface |
Transmitter
Card: |
|
|
|
PCI
Express x8 electrical and x16 mechanical |
|
|
|
Performance |
|
|
|
Proxy
Stream Resolution |
1x
1920x1080 @60Hz YUV 4:2:0 (not yet enabled) |
|
|
|
USB
Support |
High
Speed USB 2.0 |
|
|
|
Keyboard,
mouse, touchscreens, USB 2.0 mass storage device, industrial keyboards,
smart card/CAC readers, USB speakers and other USB HID
devices. |
|
|
|
Audio
Support |
Digital
audio embedded in DisplayPort |
|
|
|
Stereo
analog audio (available with appliances) |
|
|
|
Link
Redundancy |
Yes
(available with appliances) |
|
|
|
Maximum
Distance on Copper Cables (Point-to-Point) |
Cat5e,
Cat6100 m (328 ft) |
|
|
|
|
|
Maximum
Distance on Fiber-Optic Cables (Point-to-Point) |
OM2,
OM3, OM4 (50/125m) multi-mode - 550 m (1804 ft.) |
|
|
|
OM1
(62.5/125m) multi-mode - 275 m (902 ft.) |
|
|
|
OS1,
OS2 (9/125m) single-mode - 10 km (6.20 mi) |
|
|
|
Maximum
Distance over IP |
LAN |
|
|
|
Private
WAN |
|
|
|
Internet* |
|
|
|
*
Network conditions vary per region. For optimal user experience we
recommend a ping time of less than 20ms and +/- 10% WC jitter. Please
contact Matrox for additional details. |
|
|
|
Network |
|
|
|
Network
Standard |
1,000
base-T Ethernet |
|
|
|
Auto-detect |
|
|
|
Half/full
duplex |
|
|
|
Routing
Scheme |
Unicast |
|
|
|
Multicast |
|
|
|
Multi-unicast |
|
|
|
IP
Addressing |
IPv4 |
|
|
|
DHCP
(default) and static IP |
|
|
|
Physical |
|
|
|
Product
Dimensions |
Transmitter
Appliance: |
|
|
|
1U
R |
|
|
|
7.45
x 1.676 x 8.526 inches |
|
|
|
18.9
x 4.26 x 21.66 cm |
|
|
|
Transmitter
Card: |
|
|
|
Full
height, length |
|
|
|
9.020
x 4.376 inches |
|
|
|
22.91
x 11.12 cm |
|
|
|
Receiver
Appliance: |
|
|
|
1U
R |
|
|
|
7.45
x 1.676 x 8.526 inches |
|
|
|
18.9
x 4.26 x 21.66 cm |
|
|
|
Power
Supply Unit |
External
PSU |
|
|
|
Lockable
PSU Connector |
|
|
|
Additional
Features |
Transmitter
Appliance: |
|
|
|
3x
LED Indicators (status and power) |
|
|
|
1x
Power & 1x Reset Button |
|
|
|
Transmitter
Card: |
|
|
|
1x
LED Indicators (status and power) |
|
|
|
Receiver
Appliance: |
|
|
|
3x
LED Indicators (status and power) |
|
|
|
1x
Power & 1x Reset Button |
|
|
|
Hardware
& Software |
|
|
|
Hardware
Included |
Transmitter
Appliance: |
|
|
|
4x
6ft power cord for North America/Japan, UK, Australia/China, Continental
Europe/China |
|
|
|
USB-A
To USB-B 6ft cable |
|
|
|
Transmitter
Card: |
|
|
|
Mini
USB-A To USB-B 2ft cable |
|
|
|
Receiver
Appliance: |
|
|
|
4x
6ft power cord for North America/Japan, UK, Australia/China, Continental
Europe/China |
|
|
|
Accessories
(sold separately) |
Rack
Mount Kit (RMK-19TR-A) |
|
|
|
Rack mounting shelf (19 in / 48.26
cm) |
|
|
|
Pan head Phillips screws (4x 10-32 x 3/4
in) |
|
|
|
Pan head Phillips screws (4x 12-24 x 3/4
in) |
|
|
|
Flat head Phillips screws (6x M3 x 6
mm) |
|
|
|
Under
Desk Mounting Brackets (RMK-UDMKIT-A) |
|
|
|
2x brackets |
|
|
|
Pan head screws (2x 6mm M3) |
|
|
|
3.5mm
Audio Stereo Cable (CAB-AUDIO-TRS6F) |
|
|
|
1x 3.5mm Audio Stereo Cable 6ft |
|
|
|
Mini
DisplayPort Secure Cable solution (SK-SLNB-6) |
|
|
|
6x secure c-clips |
|
|
|
6x thumb screws |
|
|
|
Multi-Mode
Fiber Optic Transceiver (XTO3-SFPMM) |
|
|
|
1x 1.25Gbps SFP mulitmode
transceiver |
|
|
|
Single-Mode
Fiber Optic Transceiver (XTO3-SFPSM) |
|
|
|
1x 1.25Gbps SFP single-mode
transceiver |
|
|
|
|
|
|
Secure
Mini DisplayPort to DisplayPort Adapter
(CAB-MDP-DPF)* |
|
|
|
1x Mini DisplayPort to DisplayPort Adapter
cable |
|
|
|
NRG
Redundant Power Supply Unit |
|
|
|
Rack tray with one NRG RPSU pre-installed (part number:
NRG-5-1DB) |
|
|
|
Rack tray with two NRG RPSU pre-installed (part number:
NRG-5-2DB) |
|
|
|
*Not
recommended for 4K60 resolutions |
|
|
|
Software |
Extio
Central Manager (free download) |
|
|
|
General |
|
|
|
Supported
Operating Systems (software) |
Extio
Central Manager Software |
|
|
|
Microsoft
Windows 10 (64-bit), Windows 7 (32-bit), Windows 7 (64-bit), Server 2016,
Server 2012 R2, Server 2008 R2 |
|
|
|
EMC/EMI
Device Class |
Class
A |
|
|
|
EMC/EMI
Compliance |
CE
(EU) |
|
|
|
FCC
(US) |
|
|
|
KC
(Korea) |
|
|
|
RCM
(Aus/NZ) |
|
|
|
VCCI
(Japan) |
|
|
|
Warranty |
Two-year
limited warranty with free online or telephone
support |
|
|
