Product |
|
Part
Number |
MVX-D6152-4 |
|
Form
Factor |
Standalone
appliance |
|
Rack-mountable:
1U, 1/2 rack (horizontal) |
|
Connectivity |
|
USB
Ports |
1x
USB 2.0 (front) |
|
1x
USB 3.0 (back) |
|
RS-232 |
1x
for IP to RS-232 control |
|
Performance |
|
Color
Space and Chroma Sub-Sampling |
4:2:0
(8-bit and 10-bit) |
|
YUV
4:0:0, 4:2:0, 4:2:2, or |
|
4:4:4
to RGB 4:4:4 8-bit |
|
Video
and Audio Processing |
|
HDCP
Support |
Only
available between Maevex 61X2 Encoders and Maevex 6152
Decoder |
|
Audio
Sampling Frequency |
32
kHz |
|
44.1
kHz |
|
48
kHz |
|
Audio
Bitrates |
Up
to 576 Kbps (AAC-LC) |
|
Up
to 288 Kbps (AAC-HEv1) |
|
Up
to 144 Kbps (AAC-HEv2) |
|
Codec |
|
Encoder
Bitrates Range |
15
Mbps (default) |
|
50
Kbps to 120 Mbps (Maximum operational bitrate per stream is dependent on
number of streams and features enabled.) |
|
Encoding
Level |
Up
to 5.2 |
|
Video
Decoding Formats |
H.264/MPEG-4
Part 10 (AVC) |
|
Decoding
Profiles |
Baseline
Profile (BP) |
|
Main
Profile (MP) |
|
High
Profile (HiP) |
|
High
10 Profile (Hi10P) |
|
High
4:2:2 Profile (Hi422P) |
|
High
4:4:4 Predictive Profile Separate Plane
(Hi444PP) |
|
CAVLC
4:4:4 intra (44) |
|
Decoder
Bitrates Range |
50
Kbps to 120 Mbps (per stream) |
|
Decoding |
|
Decoding
Capability |
4:2:0* |
|
2x
3840x2160 @60Hz |
|
1x
4096x2160 @60Hz |
|
4x
3840x2160 @30Hz |
|
3x
4096x2160 @30Hz |
|
8x
1920x1080 @60Hz |
|
16x
1920x1080 @30Hz |
|
4:4:4* |
|
1x
3840x2160 @30Hz |
|
1x
4096x2160 @30Hz |
|
2x
1920x1080 @60Hz |
|
3x
1920x1080 @60Hz |
|
6x
1920x1080 @30Hz |
|
*Each
decoding capability is independent of the others listed, and excludes any
additional processing such as compositing, scaling, etc. Content can
affect results. Contact Matrox for more details and decoding capability
support. |
|
Network |
|
Network
Standard |
100/1,000
base-T Ethernet |
|
Auto
speed |
|
Half/full
duplex |
|
Routing
Scheme |
Unicast |
|
Multicast |
|
IP
Addressing |
IPv4 |
|
DHCP
(default) and static IP |
|
Streaming
Protocols |
RTSP
(TCP), RTCP & RTP (UDP) all required |
|
RTSP
over TCP (interleaved) |
|
SRT
over UDP |
|
MPEG2.TS
over UDP |
|
Command
and Control |
HTTPS
over TCP |
|
UPnP
(discovery) |
|
Physical |
|
Product
Dimensions |
8.53
(L) x 7.52 (W) x 1.68 (H) inches |
|
21.7
(L) x 19.1 (W) x 4.3 (H) cm |
|
Unit
Weight |
Device
only ~ 1.5 kg. |
|
With
accessories and packaging ~ 3 kg. |
|
Noise
Emission |
~25
dB at full decode capacity |
|
Additional
Features |
Push-button
controls: |
|
Menu, enter, scroll forward, scroll back |
|
Choose output, content, and zoom to full
screen |
|
Hardware
& Software |
|
Hardware
Included |
Maevex

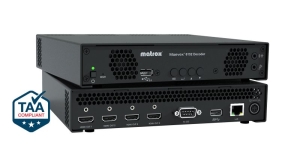

6152 Quad 4K Decoder Appliance |
|
100-240
V a.c. in, 12 V d.c. out, 60W power supply |
|
Power
cords (US, EU, UK, Aus/NZ) |
|
DIN4
locking connector |
|
Accessories
(sold separately) |
Rack
Mount Kit (RMK-19TR-A) |
|
Rack mounting shelf (19 in / 48.26 cm) |
|
Pan head Phillips screws (4x 10-32 x 3/4 in) |
|
Pan head Phillips screws (4x 12-24 x 3/4 in) |
|
Flat head Phillips screws (6x M3 x 6 mm) |
|
NRG
Redundant Power Supply Unit |
|
Rack tray with one NRG RPSU pre-installed (part number:
NRG-5-1DB) |
|
Rack tray with two NRG RPSU pre-installed (part number:
NRG-5-2DB) |
|
Software |
PowerStream
Plus (free download)* |
|
Compatible
with Maevex 5100 Series and Maevex 6100 Series |
|
Network
discovery |
|
Multi-encoding
and recording management |
|
Multi-protocol
management |
|
Frame
rate management |
|
Resolution
control |
|
Administrator
and user credential management |
|
Scaling
management |
|
SNMP
support |
|
Maevex
6100 Series RS-232 API (free download)* |
|
Control
Maevex 6100 appliances via Crestron, Kramer, Extron, or other tabletop
touch-screen controllers. |
|
Access
basic commands including list, start/stop streaming and recording, and
device reboot. |
|
Maevex
SDK for Windows and Linux* |
|
Full-access
to entire feature set via SDK |
|
.NET
4.5.1 or higher, standalone library and Mono 5.2 or higher for
Linux |
|
Maevex
REST API* |
|
Maevex
6100 Series REST API |
|
Available
for lower-level development |
|
*Contact
Matrox for more details. |
|
Environmental |
|
Power
Consumption |
45W |
|
General |
|
Supported
Operating Systems (software) |
Microsoft
Windows 10 (64-bit) |
|
Windows
Server 2016 |
|
Windows
7 (32-bit, 64-bit) |
|
Windows
Server 2008 R2 |
|
Windows
Server 2019 |
|
EMC/EMI
Device Class |
Class
A |
|
EMC/EMI
Compliance |
CE
(EU) |
|
FCC
(US) |
|
ICES-3
(Canada) |
|
KC
(Korea) |
|
RCM
(Aus/NZ) |
|
Environmental
Compliance |
China
RoHS |
|
EU
RoHS |
|
REACH |
|
WEEE |
|
Warranty |
Two-year
limited warranty with free online or telephone
support |
