All stock codes associated to this product
43UH7JH, 43UH7J-H, LG43UH7JH, LG-43UH7J-H

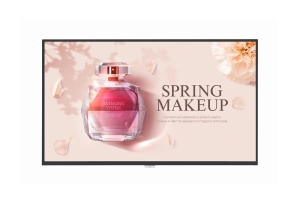

LG 43UH7J-H New High Haze UHD Standard Signage
Overview
- Brightness(Typ.) : 700 cd/m
- Surface Treatement (Haze) : 25%
- Bezel : 8.4 mm (T/R/L), 14.4 mm (B)
- Depth : 39.9 mm
- Interface : HDMI(2)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/
IR
- Built-in Speaker
Specifications
|
PANEL |
|
|
Screen
Size |
43" |
|
Panel
Technology |
IPS |
|
Back
Light Type |
Edge |
|
Aspect
Ratio |
16:09 |
|
Native
Resolution |
3840
x 2160 (UHD) |
|
Refresh
Rate |
60Hz |
|
Brightness |
700nit
(Typ.) |
|
Contrast
Ratio |
1,200:1 |
|
Dynamic
CR |
1,000,000:1 |
|
Color
gamut |
BT709
95% |
|
Viewing
Angle(H x V) |
178
X 178 |
|
Color
Depth |
8bits
+ FRC, 1.07Billion colors |
|
Response
Time |
8ms
(G to G) |
|
Surface
Treatment(Haze) |
25% |
|
Life
time |
50,000Hrs
(Min.) |
|
Operation
Hours (Hours/Day) |
24/7 |
|
Portrait
/ Landscape |
Yes
/ Yes |
|
CONNECTIVITY |
|
|
Input |
HDMI
(2, HDMI1/HDMI2 : HDCP 2.2/1.4), DP (1, USB-C(DP Alternate mode) shared ,
HDCP2.2/1.3), DVI-D (1, HDCP1.4), Audio In, RS232C IN (1, 4pin
Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1), USB2.0 Type C ((1),
without PD funtion) |
|
Output |
DP
Out (1, Input : HDMI1/2/DVI/DP/USB-C/OPS), Audio Out, RS232C OUT (1, 4pin
Phone-jack) |
|
MECHANICAL
SPECIFICATION |
|
|
Bezel
Color |
Black |
|
Bezel
Width |
T/R/L:
8.4mm, B: 14.4mm |
|
Weight(Head) |
11.2Kg |
|
Weight(Head+Stand) |
11.8Kg |
|
Packed
Weight |
13.7Kg |
|
Monitor
Dimension(W x H x D) |
962.5
x 568.0 x 39.9mm |
|
(with
LG Logo) |
|
Monitor
Dimensions with Stand(W x H x D) |
962.5
x 613.1 x 290.0mm |
|
Carton
Dimensions(W x H x D) (Box outer size) |
1060.0
x 660.0 x 152.0mm |
|
VESATM Standard
Mount Interface |
200
x 200 |
|
KEY
FEATURE |
|
|
Key
features |
Internal
Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor,
Acceleration(Gyro) Sensor, Local Key Operation, webOS6.0, Embedded CMS
(Local Contents Scheduling, Group Manager), USB Plug & Play, Fail
over, Background Image (Booting Logo Image, No Signal Image), Sync Mode
(RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen
Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External
Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 15), Setting
Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control
Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy
Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server
Setting, webRTC, Pro:Idiom |
|
ENVIRONMENT
CONDITIONS |
|
|
Operation
Temperature |
0
C to 40 C |
|
Operation
Humidity |
10
% to 80 % |
|
POWER |
|
|
Power
Supply |
AC
100-240V~, 50/60Hz |
|
Power
Type |
Built-In
Power |
|
POWER
CONSUMPTION |
|
|
Typ. |
80W |
|
Max. |
120W |
|
BTU
(British Thermal Unit) |
273
BTU/Hr(Typ.), 410 BTU/Hr(Max.) |
|
Smart
Enegy Saving(~70%) |
56W |
|
DPM |
0.5W |
|
Power
off |
0.5W |
|
SOUND |
|
|
Speaker |
Yes |
|
CERTIFICATION |
|
|
Safety |
CB
/ NRTL |
|
EMC |
FCC
Class "A" / CE / KC |
|
ErP
/ Energy Star |
Yes
(NewErP) / Yes |
|
OPS
COMPATIBILITY |
|
|
OPS
Type Compatible |
Yes |
|
SOFTWARE
COMPATIBILITY |
|
|
SuperSign
CMS |
Yes |
|
SuperSign
Control / Control+ |
Yes
/ Yes |
|
SuperSign
WB |
Yes |
|
SuperSign
Media Editor |
Yes |
|
Promota |
Yes
(Not available for EU/CIS) |
|
Mobile
CMS |
Yes |
|
Signage
365 Care |
Yes |
|
LANGUAGE |
|
|
OSD |
English,
French, German, Spanish, Italian, Korean , Chinese(Simplified),
Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish,
Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish,
Arabic |
|
ACCESSORY |
|
|
Basic |
Remote
Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone
to RS232C Gender, USB-C Cable |
|
Optional |
Stand(ST-653T),
Wall bracket(LSW240B), OPS Kit(KT-OPSF) |
|
SPECIAL
FEATURE |
|
|
Tilt(Facedown) |
Yes
(Max 15 degree, 30C temperature, humidity 50%) |
|
IP
Rating |
IP5X |
