All stock codes associated to this product
PRIME X670-P WIFI-CSM, PRIME X670P WIFICSM, 5587509, MBAX670PPRIMEWF, MBA-X670-P-PRIMEWF, II357833, 90MB1BV0M0UAYC, 90MB1BV0-M0UAYC, PRIMEX670PWIFICSM, PRIME-X670-P-WIFI-CSM, 4711081884613

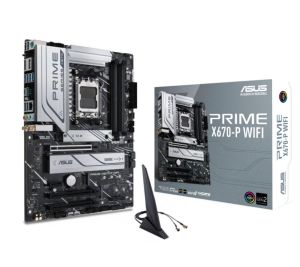

Asus Prime Gaming Desktop Motherboard - AMD X670 Chipset - Socket AM5 - ATX - Ryzen 7 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 6 x SATA Interfaces
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME X670-P WIFI-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
ASUS Control
Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely
Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility
Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
CPU Performance BoostAMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.
COOLING
PRIME X670 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsink
An M.2 heatsink takes care of the M.2 slot, warding off throttling that can occur with M.2 storage during sustained transfers.
VRM Heatsinks and High-quality Thermal Pads
Two massive VRM heatsinks and high-quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
Audio
Miscellaneous
Video
| Onboard Video | CPU Dependent Video |
Physical Characteristics
| Form Factor | ATX |
| Width | 304.8 mm |
| Depth | 243.8 mm |
Onboard Interfaces
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 3 |
I/O Controller
| RAID Levels | 1 |
| 0 |
| 10 |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
Network &ommunication
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| 2.5Gigabit Ethernet | Yes |
Memory
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| UDIMM |
| Memory Speed Supported | 6400 MHz |
| 6200 MHz |
| 5800 MHz |
| 5600 MHz |
| 5400 MHz |
| 5200 MHz |
| 5000 MHz |
| 4800 MHz |
| 6000 MHz |
Processor &hipset
| Processor Supported | Ryzen 7 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Chipset Manufacturer | AMD |
| Chipset Model | X670 |
I/O Expansions
| Number of PCI Express x1 Slots | 1 |
| Number of Total Expansion Slots | 4 |
| Number of PCI Express x16 Slots | 3 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express 3.0 |
| Total Number of PCI Express Slots | 4 |
General Information
| Product Type | Gaming Desktop Motherboard |
| Manufacturer Part Number | PRIME X670-P WIFI-CSM |
| Manufacturer Website Address | https://www.asus.com/au |
| Manufacturer | ASUS Computer International |
| Product Name | X670-P WIFI-CSM Gaming Desktop Motherboard |
| Product Line | Prime |
| Brand Name | Asus |
Interfaces/Ports
| S/PDIF | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 10 |
| Thunderbolt | Yes |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| Number of Thunderbolt 4 Ports | 1 |
