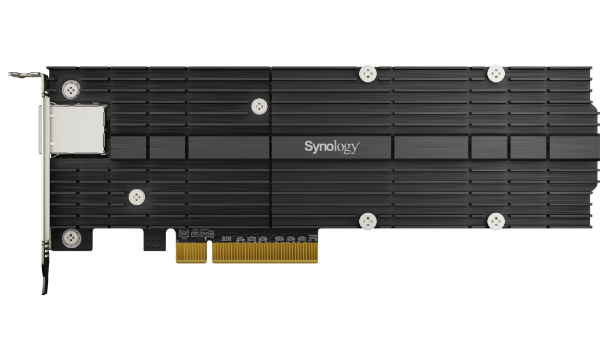

Synology E10M20-T1 10Gbe & M.2 SSD Adapter Card - Supporting SNV3400 and SNV3500 only

IMG 1 of 1
Our Price:
$472.35
RRP:
$639.00
You Save:
$166.65
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
522548
(?) Brand:
Synology Web Site
Manuf No:
E10M20-T1
E10M20T1
Shipping Weight:
0.6755 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
E10M20T1, E10M20-T1, BASYE10M20T1, BASY-E10M20-T1, SY70208, 29SE10M20T1, 29SE10M20-T1, 0846504003488, 4711174723485

Synology E10M20-T1 interface cards/adapter Internal PCIe

Manufacturer: SYNOLOGY
Category: Computer Components
Sub-Category: Interface Cards/Adapters
SKU: E10M20-T1
EAN: 0846504003488 4711174723485

Description

10GbE bandwidth and M.2 SSD cache, all at once Synology E10M20-T1 helps you boost I/O performance and network bandwidth simultaneously using just one PCIe expansion slot on your Synology NAS. - Achieve Multi-Gig Ethernet transmission speeds of up to 10 Gbps. - Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots. - Free up primary drive bays for data storage. A perfect match with Synology SNV3000 series NVMe SSD Install Synology SNV3000 series NVMe SSD on the E10M20-T1 adapter card for fast and streamlined cache acceleration, and take full advantage of Synology SSD’s enterprise-grade endurance, performance, and reliability with your Synology NAS.

Specifications

Ports & interfaces
InternalYes
Host interfacePCIe
Output interfacePCIe
NVMeYes
Expansion card form factorFull-height / Low-profile
Expansion card standardPCIe 3.0
Performance
PurposeNAS / Storage server
Full duplexYes
Data transfer rate (max)10 Gbit/s
Product colourBlack
NVMeYes
Harmonized System (HS) code84733020
Design
InternalYes
PurposeNAS / Storage server
Product colourBlack
Cooling typePassive
Features
Full duplexYes
Data transfer rate (max)10 Gbit/s
Harmonized System (HS) code84733020
NVMeYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Technical details
CompatibilitySA series:SA3600, SA3400 22 series:DS3622xs+, DS2422+ 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+ 20 series:RS820RP+, RS820+ 19 series:DS2419+, DS2419+II, DS1819+ 18 series:RS3618xs, RS2818RP+, DS3018xs, DS1618+ 17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xs, DS3617xsII
Harmonized System (HS) code84733020
Weight & dimensions
Width200.1 mm
Depth17.7 mm
Height71.8 mm
Packaging data
Quick installation guideYes
Quantity1
Other features
CompatibilitySA series:SA3600, SA3400 22 series:DS3622xs+, DS2422+ 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+ 20 series:RS820RP+, RS820+ 19 series:DS2419+, DS2419+II, DS1819+ 18 series:RS3618xs, RS2818RP+, DS3018xs, DS1618+ 17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xs, DS3617xsII
Packaging content
Quick installation guideYes
Quantity1

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Synology) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
