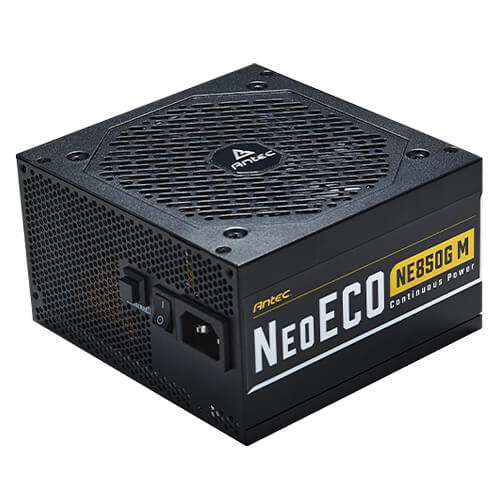

Antec Neo ECO Modular NE850G M AU power supply unit 850 W 20+4 pin ATX Black

Manufacturer: Antec
Category: Batteries & Power Supplies
Sub-Category: Power Supply Units
SKU: NE850G M AU
EAN: 0761345117623

Description

The brand-new NeoECO Gold Modular series was born ready for the best DIY-PC experience seekers, and it also serves exceptional performance and outstanding stability. Featured 100% full modular design and 80 PLUS Gold certification, the NeoECO Gold Modular series keeps your PC hardware installation convenient and clean. It still provides highly efficient power to your system and reduces your electricity bills. The advanced thermal control with the Zero RPM mode enables to turn the fan off at low loads to provide absolute silence. With the 120mm silent fan, the NeoECO Gold Modular can optimize the balance between cooling and noise. High-quality Japanese heavy-duty caps allow your system has more stable performance. The CircuitShieldâ„¢ design serves your industry-grade protection to make your system safe in any environment. With the 7-year warranty, the NeoECO Gold Modular series will be the ideal choice for professional modders and PC gamers. 120mm Silent Fan Features improvement for airflow and excellent durability. Zero RPM Mode The Zero RPM fan mode further automatically ensures zero fan speed at low loads to reduce plenty of noise and keep absolute silence. Japanese Heavy-Duty Caps Japanese capacitors ensure the tightest DC stability and regulation, for eliability that you and your system can count on. PhaseWaveTM LLC + DC to DC Design A server-class Half-Bridge LLC design with synchronous rectification based on a DC-DC topology to improve performance and stability. 100% Full Modular Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.gamers.

Specifications

Cooling
Fan diameter12 cm
Number of fans1 fan(s)
Cooling typeActive
Performance
On/off switchYes
80 PLUS certification80 PLUS Gold
PurposePC
ATX version2.4
CertificationcTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / UKCA / ICES
Design
80 PLUS certification80 PLUS Gold
CertificationcTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / UKCA / ICES
Product colourBlack
Fan diameter12 cm
On/off switchYes
Number of fans1 fan(s)
Cooling typeActive
Power
Total power850 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current10 A
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)100 W
Combined power (+12V)840 W
Combined power (+5V)100 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)12.5 W
Max output current (+3.3V)20 A
Max output current (+12V)70 A
Max output current (+5V)20 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)2.5 A
Power protection featuresOver power, Over voltage, Overcharge, Short circuit, Under voltage
Efficiency92%
Ports & interfaces
Motherboard power connector20+4 pin ATX
Number of SATA power connectors10
Peripheral (Molex) power connectors (4-pin)5
PCI Express power connectors (6+2 pin)6
CPU power connector (4+4 pin)Yes
ATX power connector (20+4 pin)Yes
PCI Express connectorYes
Floppy drive power connector1
Floppy disk drive connectorYes
Cabling typeModular
Operational conditions
Operating temperature (T-T)0 - 40 °C
Weight & dimensions
Width140 mm
Depth150 mm
Height86 mm
Weight1.38 kg
Packaging data
Cables includedPCIe, Peripheral (Molex), SATA
Package typeBox
Package weight2.55 kg
Certificates
80 PLUS certification80 PLUS Gold
CertificationcTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / UKCA / ICES
Packaging content
Cables includedPCIe, Peripheral (Molex), SATA
