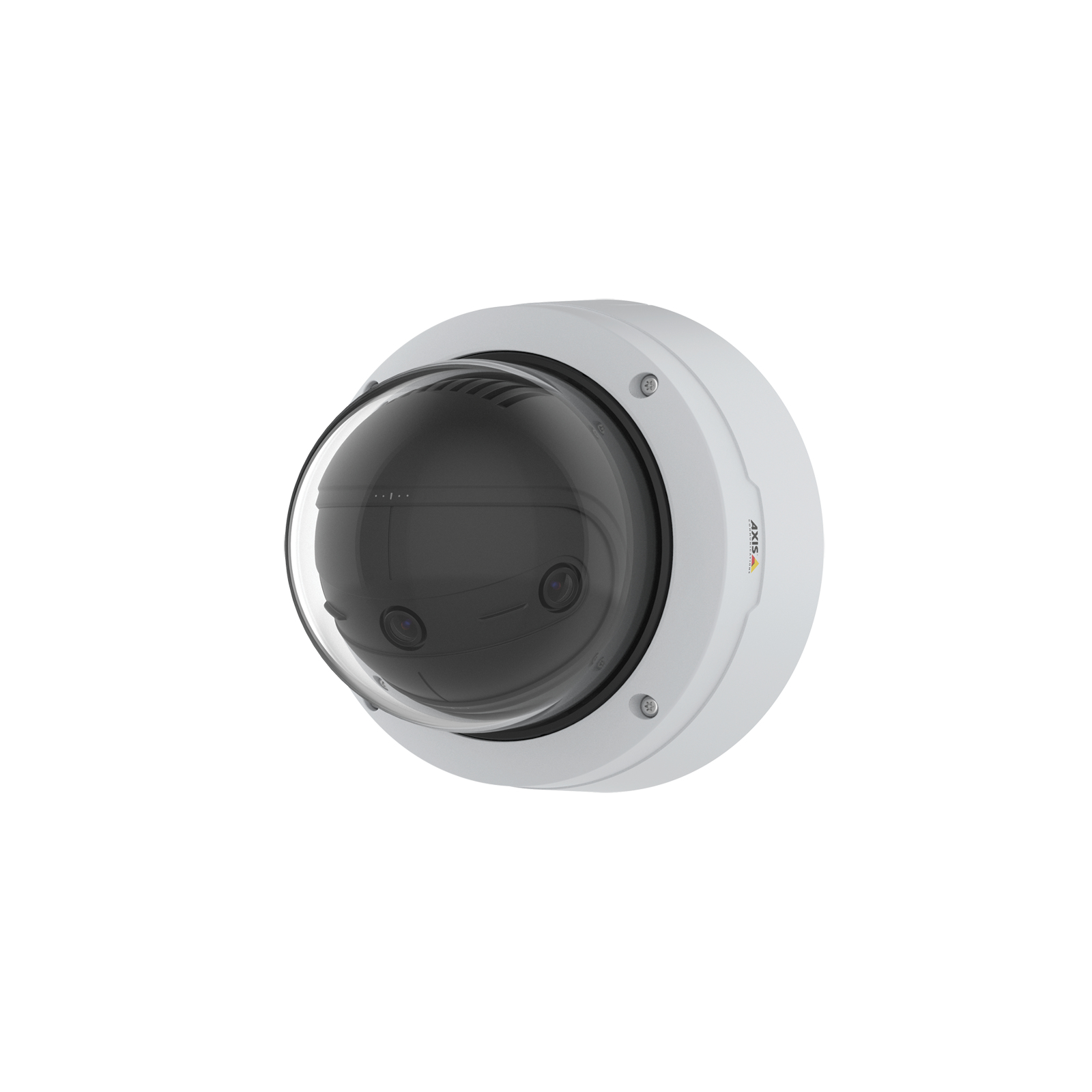

AXIS 02060-001 security camera IP security camera Outdoor 5120 x 2560 pixels Ceiling/wall

IMG 1 of 1
Our Price:
$2,995.00
RRP:
$3,139.40
You Save:
$144.40
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
522693
(?) Brand:
AXIS
Manuf No:
02060-001
02060001
Shipping Weight:
2.5 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
02060-001, 02060001, 5332292, P3818PVE, P3818-PVE, 7331021071742

Axis P3818-PVE IP security camera Outdoor 5120 x 2560 pixels Ceiling/wall

Manufacturer: Axis
Category: Home
Sub-Category: Security Cameras
SKU: 02060-001
EAN: 7331021071742

Description

 Axis P3818-PVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Housing material: Aluminium, Polycarbonate (PC). Minimum illumination: 0.05 lx, Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Fixed focal length: 3.2 mm

Specifications

Performance
Infrared (IR) cut-off filterYes
Number of languages11
Languages supportSimplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian
TypeIP security camera
Connectivity technologyWired
Placement supportedOutdoor
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationEAC, EN 55032 A, EN 55035, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35, CISPR 24, CISPR 35 IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22, IS 13252 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 4X, NEMA TS 2 (2.2.7-2.2.9), MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 512.6) NIST SP500-267
Design
IK codeIK10
Product colourWhite
Mounting typeCeiling/wall
International Protection (IP) codeIP66, IP67
Housing materialAluminium, Polycarbonate (PC)
Camera
Minimum illumination0.05 lx
Tilt angle range0 - 50°
Pan range-180 - 180°
Camera shutter speed1/91000 - 1/25, 1/50000 - 1/25 s
Camera pan controlYes
Camera tilt controlYes
Lens viewing angle, horizontal180°
Lens viewing angle, vertical90°
Progressive scanYes
Image sensor
Sensor typeCMOS
Progressive scanYes
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Lens system
Maximum aperture number2
Fixed focal length3.2 mm
Video
Noise reductionYes
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Maximum resolution5120 x 2560 pixels
Video compression formatsAVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Frame rate30 fps
Video streamingYes
Total megapixels13 MP
Audio
Voice codecsG.711, G.726, OPUS
Audio system2-way
Network
BluetoothNo
Ethernet interface typeGigabit Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3at
Quality of Service (QoS) supportYes
Ethernet LANYes
Wi-FiNo
Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS , TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT, Syslog, Link-Local address (ZeroConf)
Storage
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Built-in HDDNo
Flash memory512 MB
Ports & interfaces
Microphone inYes
Ethernet LAN (RJ-45) ports1
Connectivity technologyWired
Security
Security algorithmsEAP-TLS, FIPS 140-2
IP address filteringYes
HTTPS encryptionYes
Password protectionYes
Management features
Web-based managementYes
Power
Power source typePoE
Power consumption (typical)11 W
Power consumption (max)18 W
Certificates
CertificationEAC, EN 55032 A, EN 55035, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35, CISPR 24, CISPR 35 IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22, IS 13252 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 4X, NEMA TS 2 (2.2.7-2.2.9), MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 512.6) NIST SP500-267
Operational conditions
Operating temperature (T-T)-40 - 50°C
Storage temperature (T-T)-40 - 65°C
Operating relative humidity (H-H)10 - 100%
Storage relative humidity (H-H)5 - 95%
Weight & dimensions
Width206 mm
Height221 mm
Weight2.2 kg
Packaging content
Number of cameras1
Other features
Video compression formatsAVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Logistics data
Harmonized System (HS) code85258900
