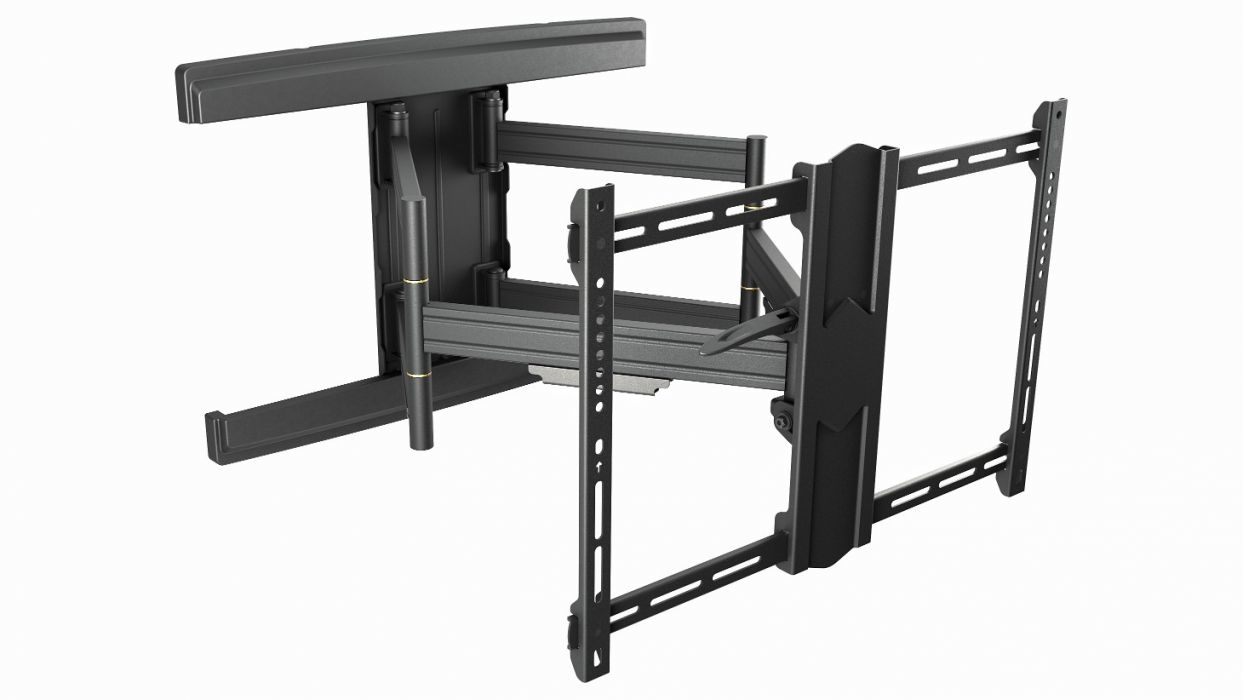

Atdec AD-WM-7060 TV mount 2.03 m (80") Grey

Manufacturer: ATDEC
Category: AV & Photo
Sub-Category: TV Mounts
SKU: AD-WM-7060
EAN: 0881493019232 0881493019249

Description

AD-WM-7060 is designed for heavier displays, including touch screens, in installations requiring full motion and long arm extension. It is extremely flexible, allowing the mounted display to be adjusted laterally, up/down, and rotationally, and supports VESA patterns for landscape and portrait orientation. Once installed, the AD-WM-7060 holds the display snug against the wall with profile 70mm (2.8”). It will extend to a maximum range of 800mm (31.5”) from the wall. The mounting offers full 180° lateral range, with easy +/-90° adjustment to face your audience wherever they are seated. Extending this flexibility further, the mount allows +2° to -15° up/down tilt, and +/-3° rotational adjustment. Coupled with long arm extension, these features allow AD-WM-7060 to be incredibly adaptive for presentation areas and collaboration zones. AD-WM-7060 is sleek and constructed of aluminium, with steel and plastic parts, and has integrated cable management. The unit is available in black. It suits commercial, domestic, and light industrial environments, and is ideal for collaboration spaces where delegates need close-up review of shared documents, and in meeting rooms with multiple seating areas. Designed for easy installation, AD-WM-7060 arrives pre-assembled with all display mounting fasteners. Wall mounting hardware is not included.

Specifications

Mounting
Mounting typeWall
Maximum weight capacity70 kg
Minimum screen size81.3 cm (32")
Maximum screen size2.03 m (80")
Panel mounting interface300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 200,200 x 100,600 x 400,200 x 200
Number of displays supported1
Minimum VESA mount200 x 100 mm
Maximum VESA mount600 x 400 mm
Ergonomics
Tilt angle range-15 - 2°
Angle of rotation3°
Pan range-90 - 90°
Cable managementYes
Distance to the wall (min)7 cm
Distance to the wall (max)80 cm
RotatingYes
Design
Product colourGrey
Cable managementYes
Housing materialAluminium, Plastic, Steel
Technical details
Mounting typeWall
Quantity per pack1 pc(s)
Packaging content
Mounting kitYes
Screw nuts includedYes
Packaging data
Package width546 mm
Package depth914 mm
Package height95 mm
Package weight17.9 kg
Package typeBox
Mounting kitYes
Logistics data
Master (outer) case width560 mm
Master (outer) case length935 mm
Master (outer) case height210 mm
Master (outer) case gross weight3.73 kg
Products per master (outer) case2 pc(s)
Other features
Mounting typeWall
