EC1S952 | Startech 1 Port Native ExpressCard RS232 Serial Adapter Card

Ports & interfaces
Internal	No
Host interface	ExpressCard
Output interface	Serial
Serial interface type	RS-232
Serial ports quantity	1
Performance
Baud rate	115.2 Kbit/s
Chipset	PLX/Oxford - OXPCIe952
FIFO (First In, First Out)	128 B
Product colour	Black, Silver
Harmonized System (HS) code	84733020
Design
Internal	No
Product colour	Black, Silver
Certification	REACH, FCC, CE, TAA
Features
Baud rate	115.2 Kbit/s
Chipset	PLX/Oxford - OXPCIe952
FIFO (First In, First Out)	128 B
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	-10 - 80  Â°C
Storage temperature (T-T)	-20 - 100  Â°C
Operating relative humidity (H-H)	5 - 85%
Technical details
Harmonized System (HS) code	84733020
Sustainability certificates	RoHS
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95, Windows 98, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Other operating systems supported	Windows XP Embedded
Weight & dimensions
Width	45 mm
Depth	115 mm
Height	20 mm
Weight	34 g
Package width	44 mm
Package depth	214 mm
Package height	150 mm
Package weight	200 g
Packaging data
Manual	Yes
Drivers included	Yes
Package width	44 mm
Package depth	214 mm
Package height	150 mm
Package weight	200 g
Packaging content
Manual	Yes
Drivers included	Yes
Other features
Chipset	PLX/Oxford - OXPCIe952

---

Add a high-speed RS-232 Serial port to your laptop computer via an ExpressCard expansion slot

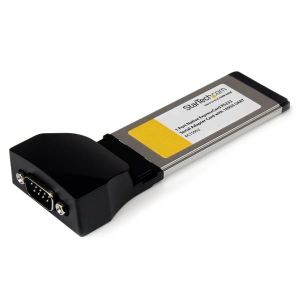

The EC1S952 1 Port Native ExpressCard RS232 Serial Adapter Card with 16950 UART lets you add an RS232 serial port to your laptop or ExpressCard-equipped desktop computer.

The serial ExpressCard is designed based on a single-chip architecture (as opposed to cards that use a "bridge chip"), providing native PCI Express communication for greater performance and reliability by reducing the CPU load by up to 48%, and lowering power consumption.

An included stabilizer bracket allows the EC1S952 to fit snugly in both 34mm and 54mm ExpressCard slots. Providing optimal communication with RS232 serial devices, this ExpressCard serial card supports baud rates of up to 115.2Kbps and features a 128-byte FIFO buffer, plus a high performance 16C950 UART.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

- The high performing single chip design optimizes speed, reliability, and power while reducing CPU load by as much as 48%
- Compatible with both 34mm and 54mm ExpressCard slots; includes a slot spacer for greater security while installed in 54mm slots
