PEXUSB4DP | Startech 4 Port PCI Express Low Profile High Speed USB Card

Ports & interfaces
Internal	Yes
Host interface	PCIe
Output interface	USB 2.0
USB 2.0 ports quantity	3
Internal USB 2.0 ports quantity	1
Performance
Chipset	VIA/VLI - VT6212
Data transfer rate (max)	0.48 Gbit/s
Product colour	Green
Harmonized System (HS) code	84733020
Design
Internal	Yes
Product colour	Green
Certification	CE, FCC, REACH, TAA
Features
Chipset	VIA/VLI - VT6212
Data transfer rate (max)	0.48 Gbit/s
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	0 - 75  Â°C
Storage temperature (T-T)	-40 - 125  Â°C
Operating relative humidity (H-H)	0 - 80%
Technical details
Harmonized System (HS) code	84733020
Sustainability certificates	RoHS
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019
Weight & dimensions
Width	80 mm
Depth	90 mm
Height	20 mm
Weight	46 g
Package width	174 mm
Package depth	144 mm
Package height	32 mm
Package weight	132 g
Packaging data
Mounting brackets included	Yes
Manual	Yes
Drivers included	Yes
Package width	174 mm
Package depth	144 mm
Package height	32 mm
Package weight	132 g
Quantity	1
Packaging content
Mounting brackets included	Yes
Manual	Yes
Drivers included	Yes
Quantity	1
Other features
Chipset	VIA/VLI - VT6212

---

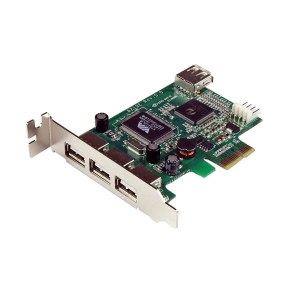

Add 4 USB 2.0 ports to your low profile/small form factor computer through a PCI Express expansion slot

The PEXUSB4DP is a low profile 4 port USB card designed for versatility and performance. Providing simple system expansion for added peripheral connections, this PCI Express USB card adds 3 external USB 2.0 slots and 1 internal USB 2.0 slot, with support for high speed USB 2.0 data transfer rates of up to 480 Mbps, and includes WHQL certified drivers and easy plug and play installation. Capable of adapting to virtually any PC case form factor, the low profile USB card includes a standard profile bracket for installation in full form factor cases.

The StarTech.com Advantage

- Add 4 USB 2.0 ports to a low profile/small form factor (SFF) computer system, to conserve expansion port availability
- Dedicated power input ensures each port receives the full amount of power capable under USB 2.0 specification
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
