All stock codes associated to this product
PEX1PCI1, 1601014, 0065030834629
| Performance |
|---|
| Chipset | PERICOM PI7C9X110BNBE |
| Product colour | Red |
| Harmonized System (HS) code | 84733020 |
| Ports & interfaces |
|---|
| Host interface | PCIe |
| Output interface | PCI 32-bit |
| Design |
|---|
| Product colour | Red |
| Certification | CE, FC, ROHS |
| Features |
|---|
| Chipset | PERICOM PI7C9X110BNBE |
| Harmonized System (HS) code | 84733020 |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Technical details |
|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions |
|---|
| Width | 70 mm |
| Depth | 135 mm |
| Height | 20 mm |
| Weight | 52 g |
| Package width | 175 mm |
| Package depth | 144 mm |
| Package height | 32 mm |
| Package weight | 121 g |
| Packaging data |
|---|
| Package width | 175 mm |
| Package depth | 144 mm |
| Package height | 32 mm |
| Package weight | 121 g |
| Other features |
|---|
| Ports quantity | 1 |
| Platform | PC |
| Connectivity technology | Wired |
| Form factor | LP/ST |
| Power requirements | 3.3V |
| Mac compatibility | No |
| Compatible operating systems | Windows 2000/XP/Vista |
| I/O ports | 1x PCI 32-bit |
| Chipset | PERICOM PI7C9X110BNBE |

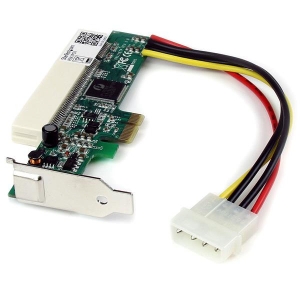

Install half-height/low profile PCI interface cards in a standard PCI Express expansion slot
This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots.
A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V).
The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.
To ensure suitable installation in any low profile server or desktop computer, the PCIe/PCI adapter features an innovative bracket design that adapts and secures the low profile PCI or PCI-X card into the converted slot.
The StarTech.com Advantage
- The unique bracket design allows a low profile/half-height PCI card to work seamlessly in a PCI Express-based expansion slot
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
