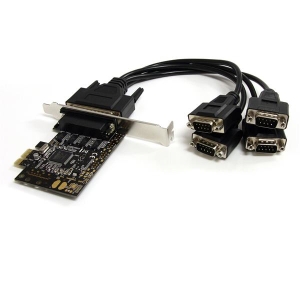

PEX4S553B | Startech 4 Port RS232 PCI Express Serial Card w/ Breakout Cable

Ports & interfaces
Internal	Yes
Host interface	PCIe
Output interface	Serial
Serial interface type	RS-232
Serial ports quantity	4
Performance
Data bits	5, 6, 7, 8
Baud rate	230.4 Kbit/s
Chipset	ASIX Moschip MCS9904CV-AA
FIFO (First In, First Out)	256 B
Product colour	Black
Harmonized System (HS) code	84733020
Design
Internal	Yes
Product colour	Black
Certification	REACH, CE
Features
Data bits	5, 6, 7, 8
Baud rate	230.4 Kbit/s
Chipset	ASIX Moschip MCS9904CV-AA
FIFO (First In, First Out)	256 B
Parity bit	Even, Mark, N, Odd
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	0 - 70  Â°C
Storage temperature (T-T)	-40 - 85  Â°C
Operating relative humidity (H-H)	5 - 85%
Technical details
Harmonized System (HS) code	84733020
Sustainability certificates	RoHS
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 95, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	DOS, Windows Embedded POSReady 2009, Windows Embedded Standard 2009, Windows XP Embedded
Weight & dimensions
Width	12 mm
Depth	80.5 mm
Height	68 mm
Weight	239 g
Package width	208 mm
Package depth	145 mm
Package height	41 mm
Package weight	343 g
Packaging data
Mounting brackets included	Yes
Manual	Yes
Drivers included	Yes
Cables included	Serial
Package width	208 mm
Package depth	145 mm
Package height	41 mm
Package weight	343 g
Packaging content
Mounting brackets included	Yes
Manual	Yes
Drivers included	Yes
Cables included	Serial
Other features
Chipset	ASIX Moschip MCS9904CV-AA

---

Add 4 RS232 serial ports to any PC using a single PCI Express expansion slot

The PEX4S553B 4-Port PCI Express Serial Card (with breakout cable) lets you add 4 RS232 serial ports using a single PCIe expansion slot, with an included 1-to-4 cable enabling you to add 4 serial ports to a single low profile slot.

The serial card features a native single-chip design that provides optimum reliability and speed, reducing the CPU load by up to 48% over conventional bridge-chip serial cards - a cost-effective solution for connecting legacy serial devices to PCIe-enabled computers.

The multi-port serial adapter includes both full profile and low profile/half-height brackets for compatibility with standard and small form factor computers, and is compatible with a broad range of operating systems, including Windows, Linux, and MAC OS.

This product is a replacement for our PEX4S552B card.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

- Lower CPU load of native single-chip, single lane PCI Express design ensures optimal system performance (up to 48% less CPU load)
- Includes both standard and low profile/half-height brackets, which makes this the perfect card for any application, including small form factor embedded applications
- Breakout cable design means that only one expansion slot is needed, to add 4 additional serial ports to any system
