All stock codes associated to this product
PEXUSB3S7, 2914585, 0065030860345
| Ports & interfaces |
|---|
| Internal | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Host interface | PCIe |
| Output interface | SATA, USB 3.2 Gen 1 (3.1 Gen 1) |
| Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| Internal SATA ports quantity | 1 |
| Expansion card form factor | Full-height / Low-profile |
| Performance |
|---|
| UASP support | Yes |
| Maximum cable length | 3 m |
| Chipset | Renesas/NEC - µPD720201, µPD720210 |
| Data transfer rate (max) | 5 Gbit/s |
| Product colour | Green, Metallic |
| Harmonized System (HS) code | 84733020 |
| Design |
|---|
| Mean time between failures (MTBF) | 1920042 h |
| Maximum cable length | 3 m |
| Internal | Yes |
| Product colour | Green, Metallic |
| Certification | CE, FCC, TAA |
| Features |
|---|
| UASP support | Yes |
| Chipset | Renesas/NEC - µPD720201, µPD720210 |
| Data transfer rate (max) | 5 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Operational conditions |
|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Technical details |
|---|
| Harmonized System (HS) code | 84733020 |
| Sustainability certificates | RoHS |
| System requirements |
|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Weight & dimensions |
|---|
| Width | 15 mm |
| Depth | 105 mm |
| Height | 120 mm |
| Weight | 72 g |
| Package width | 143 mm |
| Package depth | 176 mm |
| Package height | 32 mm |
| Package weight | 150 g |
| Packaging data |
|---|
| Mounting brackets included | Yes |
| Manual | Yes |
| Drivers included | Yes |
| Package width | 143 mm |
| Package depth | 176 mm |
| Package height | 32 mm |
| Package weight | 150 g |
| Packaging content |
|---|
| Mounting brackets included | Yes |
| Manual | Yes |
| Drivers included | Yes |
| Other features |
|---|
| Chipset | Renesas/NEC - µPD720201, µPD720210 |

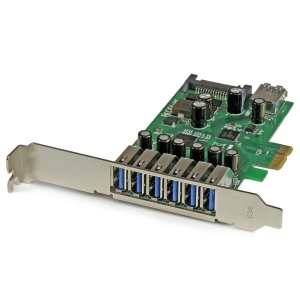

Get the scalability you need by adding 7 USB 3.0 ports with SATA power to your computer
Handle your workload more efficiently. This USB 3.0 card expands your computer’s capabilities by giving you seven extra USB 3.0 ports. It’s engineered with an innovative stacked port layout to fit easily into both low-profile and standard desktop computers.
Greater port count. Greater scalability.
More ports means you can add USB devices as you need them. This robust USB 3.0 card gives you seven USB 3.0 ports - six external and one internal - so you can plug in your tablets, smartphones, external hard drives, CD/DVD drives, printer and other devices at the same time. With so many extra ports, you can leave your devices plugged in, so they’re ready to use when you need them. It’s also economical - by being able to connect so many devices, you save the cost of extra hubs or cards.
The internal USB 3.0 port lets you connect a USB device inside your computer for added convenience and security.
Unique dual-profile design
This versatile USB 3.0 card features a dual-profile design with a stacked port layout. The innovative port configuration allows a high number of external ports in a compact design, allowing it to fit both low-profile and full desktop computer systems. A bracket is included for installation into low-profile computers.
Easy driver installation
You'll be up and running in no time. The card automatically installs in Windows 8.1 or later, with native operating system support. It’s also backward compatible with USB 2.0 and 1.x devices to help you get the most out of your existing peripherals.
Effective USB 3.0 performance enhanced by UASP
This high-performance SuperSpeed USB 3.0 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a UASP-enabled enclosure.
The rugged build quality of the card delivers long-lasting performance, and gives you peace of mind when connecting multiple devices. The PEXUSB3S7 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: UASP (USB Attached SCSI Protocol) is supported in Windows 8.1 or later, and Linux kernel 2.6.37 or later. Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
- Extend your system capabilities by adding 7 USB 3.0 ports — 6 external and 1 internal — to any PCIe compatible computer
- Unique dual-profile design fits standard and low-profile computers
- Enjoy fast file transfers with USB 3.0 5Gbps and UASP support
