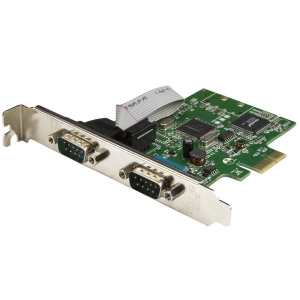

PEX2S1050 | Starnet 2-Port PCI Express Serial Card with 16C1050 UART

Ports & interfaces
Internal	Yes
Host interface	PCIe
Output interface	Serial
Serial interface type	RS-232
Serial ports quantity	2
Expansion card form factor	Full-height / Low-profile
Performance
Data bits	5, 6, 7, 8
Baud rate	460.8 Kbit/s
Chipset	SystemBase - SB16C1052PCI
FIFO (First In, First Out)	256 B
Full duplex	Yes
Flow control support	Yes
Harmonized System (HS) code	84733020
Design
Internal	Yes
Certification	CE, FCC, Microsoft WHQL
Features
Data bits	5, 6, 7, 8
Baud rate	460.8 Kbit/s
Chipset	SystemBase - SB16C1052PCI
FIFO (First In, First Out)	256 B
Full duplex	Yes
Flow control support	Yes
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	-10 - 80  Â°C
Storage temperature (T-T)	-20 - 100  Â°C
Operating relative humidity (H-H)	5 - 85%
Technical details
Harmonized System (HS) code	84733020
Sustainability certificates	RoHS
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Weight & dimensions
Width	120 mm
Depth	103 mm
Height	20 mm
Weight	61 g
Package width	143 mm
Package depth	174 mm
Package height	32 mm
Package weight	149 g
Packaging data
Mounting brackets included	Yes
Drivers included	Yes
Quick installation guide	Yes
Package width	143 mm
Package depth	174 mm
Package height	32 mm
Package weight	149 g
Logistics data
Products per master (outer) case	75 pc(s)
Master (outer) case width	356 mm
Master (outer) case length	691 mm
Master (outer) case height	319 mm
Packaging content
Mounting brackets included	Yes
Drivers included	Yes
Quick installation guide	Yes
Other features
Chipset	SystemBase - SB16C1052PCI
Flow control support	Yes

---

Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slotThis PCI Express serial card adds two high-performance RS232 serial ports to your desktop computer or server, for connecting your serial-based devices and equipment.Convenient system upgrades through PCIeThe PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that don't have RS232 ports. The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications including manufacturing equipment, POS equipment, security devices such as surveillance cameras, card readers or access panels, and environment or building control systems.High-performance serial communicationThe PCIe serial card delivers high-performance serial communication, with support for data transfer rates of up to 460Kbps. The serial card provides CPU load decrease which helps ensure optimal system performance and prevent errors such as overruns by preserving resources. In addition, the dual-channel UART ensures smooth performance, even while both ports are in use.Easy installationThe serial card is easy to install and configure, with support for a broad range of Windows Â® operating systems. Plus, the card features IRQ sharing and supports plug-and-play serial device connections, guaranteeing convenient, hassle-free installation. It comes with a standard-profile bracket installed, and also includes an optional low-profile bracket.The PEX2S1050 is backed by a 2-year lifetime warranty and free lifetime technical support.
