IMG 1 of 8
Our Price:
$94.95
RRP:
$103.39
You Save:
$8.44
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days

Part Number:
523570
(?) Brand:
Manuf No:
S322M225R
Shipping Weight:
0.07 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
S322M225R, 4017379, 0065030875141
Ports & interfaces
InternalYes
Port multiplierYes
Host interfaceSATA
Output interfaceM.2
SATA revision3.0
Number of M.2 (B) slots2
Number of SSDs supported2
Performance
Hot-swapNo
Port multiplierYes
Plug and PlayYes
ChipsetASMedia - ASM1092R
RAID levels0, 1, BIG, JBOD
Data transfer rate (max)6 Gbit/s
Product colourRed
TRIM supportYes
S.M.A.R.T. supportYes
Harmonized System (HS) code84733020
Design
Hot-swapNo
Easy to installYes
InternalYes
Product colourRed
CertificationCE, FCC, REACH, TAA
Features
Plug and PlayYes
ChipsetASMedia - ASM1092R
RAID levels0, 1, BIG, JBOD
Data transfer rate (max)6 Gbit/s
TRIM supportYes
S.M.A.R.T. supportYes
Harmonized System (HS) code84733020
Operational conditions
Operating temperature (T-T)5 - 50  Â°C
Storage temperature (T-T)-25 - 70  Â°C
Operating relative humidity (H-H)15 - 90%
Technical details
Harmonized System (HS) code84733020
Sustainability certificatesRoHS
Weight & dimensions
Width70 mm
Depth100 mm
Height7 mm
Weight41 g
Package width172 mm
Package depth142 mm
Package height30 mm
Package weight110 g
Packaging data
Mounting brackets includedYes
Quick installation guideYes
Package width172 mm
Package depth142 mm
Package height30 mm
Package weight110 g
Screws includedYes
Packaging content
Mounting brackets includedYes
Quick installation guideYes
Screws includedYes
Other features
ChipsetASMedia - ASM1092R

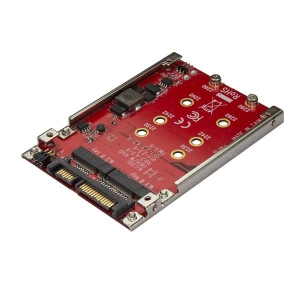

Create high-performance storage with configurable RAID, by installing two M.2 SATA SSDs into a 2.5" SATA interface

Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 SATA drives instead of a SATA platter drive, in a single 2.5" drive bay, and increase your storage options by configuring a powerful RAID array.

Build a RAID array to enhance system performance

The dual M.2 to SATA adapter supports multiple RAID modes, including RAID 0, 1, or spanning, helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independently of one another.

Maximize file transfer speeds

The M.2 SATA SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SATA SSDs in place of a platter drive reduces your data transfer bottlenecks, giving you file transfer speeds of up to 6Gbps.

The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.

Easy installation

This open-frame adapter is easy to install as it comes with all the necessary installation hardware and doesn’t require any extra software or drivers, to get you up and running quickly.

The S322M225R is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Install two M.2 SSD drives into a single 2.5" drive bay
- Multiple RAID modes supported: RAID 0, 1, spanning, or JBOD
- Open-frame steel mounting bracket with 2.5" SATA form factor housing
