All stock codes associated to this product
VS221VGA2HD, 2949936, 0065030858427
| Ports & interfaces |
|---|
| Video port type | HDMI/VGA |
| VGA (D-Sub) ports quantity | 1 |
| Number of HDMI outputs | 1 |
| HDMI in | 1 |
| DC-in jack | Yes |
| Features |
|---|
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Supported video modes | 1080p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Rack mounting | Yes |
| Maximum resolution | 1290 x 1200 pixels |
| LED indicators | Yes |
| External power adapter | Yes |
| Power |
|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter input current | 0.4 A |
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| Power requirements | 100 - 240 VAC, 0.4 A / 5 VDC, 2 A |
| Certificates |
|---|
| Certification | CE, FCC |
| Weight & dimensions |
|---|
| Weight | 225 g |
| Dimensions (WxDxH) | 54 x 102 x 29 mm |
| Packaging data |
|---|
| Package width | 236 mm |
| Package height | 64 mm |
| Package depth | 157 mm |
| Package weight | 657 g |
| Packaging content |
|---|
| Mounting brackets included | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Sustainability |
|---|
| Sustainability certificates | RoHS |
| Technical details |
|---|
| Audio support | Yes |
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
Share an HDMI display/projector between a VGA and HDMI audio/video source, with automatic and priority switching

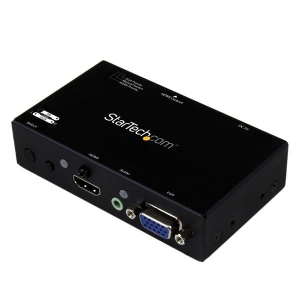

The VS221VGA2HD  HDMI & VGA Auto  Switch lets you connect  an HDMI  and a VGA  audio/video  source to the same HDMI display  or projector, and automatically or manually switch between which video source is displayed. The multi-input  A/V switch  supports video resolution up to 1920x1200 (1080p) and  includes mounting hardware for a tidy professional installation.
One Switch for VGA and HDMI
The A/V switch features built-in VGA conversion, enabling you to connect an HDMI and a VGA video source to the same HDMI Â display without the use of additional adapters or scalers.
Effortless Control
The VS221VGA2HD ensures hassle-free operation with  two different auto switching modes: automatic switching that detects and selects a newly connected device, as well as priority selection  which  lets you choose which port should be activated by default for automatic switching.
Focus on the Presentation, Not Boardroom Connections
This A/V switch has been designed with the boardroom and classroom in mind: the VS221VGA2HD features VGA and HDMI inputs to support a wide range of devices, and the built-in converter makes it easy to connect to the room’s display without the use of additional adapters. Plus, automatic switching encourages on-the-fly collaboration  among students or co-workers, by making it easy to share your projector between multiple source devices.  Â
If you are looking for a similar device with VS221HD2VGA" text="VGA output, please see our VS221HD2VGA" text="VS221HD2VGA.
The VS221VGA2HD is backed by a StarTech.com 2-year warranty, and free lifetime technical support.
The StarTech.com Advantage
- Effortless switching with automatic and priority switching
- Allow your presenters / guest to focus on the presentation or lesson without the worry of connecting to an available display or projector
