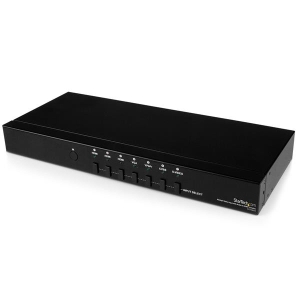

VS721MULTI | Startech Multiple Video Input with Audio to HDMI Scaler Switcher

Ports & interfaces
VGA (D-Sub) input ports	1
Video port type	HDMI
RS-232 ports	1
Number of HDMI outputs	1
HDMI in	3
Composite video in	1
Component video (YPbPr/YCbCr) in	1
Audio (L/R) out	3
Audio (L/R) in	3
3.5 mm (1/8-inch) out	Yes
Features
Product colour	Black
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 848 x 480, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 1050, 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Maximum resolution	1920 x 1200 pixels
Material	Aluminium
LED indicators	Yes
HDCP	Yes
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Power
Power plug type	Type M
AC adapter input voltage	100 - 240 V
AC adapter input current	0.6 A
AC adapter output voltage	12 V
AC adapter output current	1.5 A
Power consumption (typical)	18 W
Certificates
Certification	CE, FCC, TAA
Weight & dimensions
Width	173 mm
Weight	1.8 kg
Height	45 mm
Depth	384 mm
Packaging data
Package width	260 mm
Package height	90 mm
Package depth	459 mm
Package weight	2.7 kg
Packaging content
Mounting brackets included	Yes
Software CD	Yes
Manual	Yes
Remote control included	Yes
Cables included	Serial
AC adapter included	Yes
Mounting kit	Yes
Operational conditions
Storage temperature (T-T)	-20 - 85  Â°C
Operating temperature (T-T)	0 - 70  Â°C
Operating relative humidity (H-H)	0 - 95%
Sustainability
Sustainability certificates	RoHS
Technical details
Sustainability certificates	RoHS
Harmonized System (HS) code	85176990

---

Share an HDMI display between multiple analog or digital video sources (e.g VGA, Component, S-Video, Composite, HDMI)

The VS721MULTI Multiple Video Input to HDMI Switcher enables users to switch between 7 different audio-video sources to a single HDMI-equipped display.

This versatile switcher is the perfect solution for combining digital and analog video sources (RGB/YPbPr/YCbCr) with your digital HDMI display, eliminating the cost of upgrading individual components (i.e. DVD player, PC, VCR, etc.).

An all-in-one multimedia solution, the video converter/switcher includes support for full high definition 1080p video resolution as well as digital and analog audio. Plus, the switch features RS232 remote serial control, and includes a convenient IR remote control for switching between video sources .

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- By enabling you to share a single HDMI display between up to seven different types of digital or analog video source, the switcher/converter offers an all-in-one multimedia switching solution
- The switcher features RS232 remote serial control (with software), and a convenient IR remote control that makes it easy to switch between video sources
- The switcher/converter maximizes compatibility with A/V devices, by converting analog video sources (e.g. VGA, Component, Composite, S-Video) to an HDMI Display
