All stock codes associated to this product
VS221HD2VGA, 2826863, 0065030858410
| Ports & interfaces |
|---|
| Video port type | HDMI/VGA |
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 1 |
| DC-in jack | Yes |
| Features |
|---|
| Product colour | Black |
| Supported video modes | 1080p |
| Rack mounting | Yes |
| Maximum resolution | 1290 x 1200 pixels |
| LED indicators | Yes |
| External power adapter | Yes |
| Power |
|---|
| Power requirements | 100 - 240 VAC, 0.4 A / 5 VDC, 2 A |
| Weight & dimensions |
|---|
| Weight | 172 g |
| Dimensions (WxDxH) | 59 x 84 x 20 mm |
| Packaging data |
|---|
| Package width | 155 mm |
| Package height | 66 mm |
| Package depth | 237 mm |
| Package weight | 600 g |
| Packaging content |
|---|
| Manual | Yes |
| Cables included | AC |
| Quantity per pack | 1 pc(s) |
| Operational conditions |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Sustainability |
|---|
| Sustainability certificates | RoHS |
| Technical details |
|---|
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Logistics data |
|---|
| Quantity per pack | 1 pc(s) |
Share a VGA display/projector between a VGA and HDMI audio/video source, with priority switching

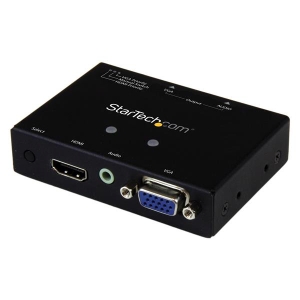

The VS221HD2VGA VGA &  HDMI Auto  Switch lets you connect  two distinct A/V sources -- one  VGA and one  HDMI to the same VGA monitor or projector, and automatically or manually switch between which video source is displayed.  This  multi-input  switch  supports video resolution up to 1920x1200 (1080p)  and  includes mounting hardware for a tidy, professional installation.
One Switch for HDMI and VGA
The A/V switch features built-in HDMI conversion, enabling you to connect an HDMI as well as  a VGA video source to the same  VGA display, without the use of  additional adapters or scalers.  The switch also supports  EDID pass-through, EDID  copy, and EDID emulation to ensure your HDMI and VGA  native resolutions will be maintained between both source connections.
Effortless Control
The VS221HD2VGA  ensures hassle-free operation with support for  priority port selection, enabling  you to  choose which port should be selected first  by sequence.  Once the device connected to your specific port is activated, the  switch will then  automatically select that port.
Focus on Your  Presentation not Boardroom Connections
This A/V switch has been designed with the boardroom and classroom in mind. The VS221HD2VGA features  VGA and HDMI inputs to support a wide range of devices, and the built-in converter makes it easy to connect to a  display without the use of additional adapters.  Plus, priority switching encourages on-the-fly collaboration  among students or co-workers, by making it easy to share your projector between multiple source devices.
Please note: Digitally encrypted content from the HDMI video source will not be displayed on the VGA display. Â If you are looking for a similar device with VS221VGA2HD" text="HDMI output, please see our VS221VGA2HD" text="VS221VGA2HD.
If you are looking for a similar device with HDMI output, please see our VS221VGA2HD" text="VS221VGA2HD
The VS221VGA2HD is backed by a StarTech.com 2-year warranty, and free lifetime technical support.
The StarTech.com Advantage
- EDID emulation ensures optimal video output, for seamless switching
- Effortless priority switching
- Allow your presenters / guests to focus on the content of their presentation or lesson without the worry of connecting to an available display or projector
