All stock codes associated to this product
VS221HDQ, 2590236, 0065030855020
| Ports & interfaces |
|---|
| Video port type | HDMI |
| HDMI ports quantity | 3 |
| Number of HDMI outputs | 2 |
| HDMI in | 1 |
| Features |
|---|
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Supported video modes | 1080p, 720p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Rack mounting | Yes |
| Plug and Play | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum operating distance | 10 m |
| Material | Aluminium, Plastic |
| LED indicators | Yes |
| HDCP | Yes |
| Extended display identification data (EDID) | Yes |
| Power |
|---|
| Power plug type | Type M |
| AC adapter input current | 0.6 A |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.5 A |
| Power consumption (typical) | 18 W |
| AC input voltage | 100 - 240 V |
| Certificates |
|---|
| Certification | CE, FCC, TAA, REACH |
| Weight & dimensions |
|---|
| Width | 65 mm |
| Weight | 290 g |
| Height | 20 mm |
| Depth | 156 mm |
| Packaging data |
|---|
| Package width | 197 mm |
| Package height | 72 mm |
| Package depth | 294 mm |
| Package weight | 853 g |
| Packaging content |
|---|
| Plug adapter type | NA, EU, UK, AU |
| Manual | Yes |
| Remote control included | Yes |
| Mounting kit | Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Sustainability |
|---|
| Sustainability certificates | RoHS |
| Technical details |
|---|
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
Discover hassle-free HDMI connection and automatic video port selection with high-definition picture quality

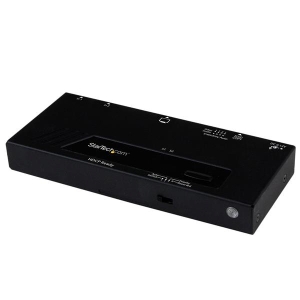

Save time and hassle by automatically switching between your HDMI audio/video sources, using the VS221HDQ 2-Port HDMI Auto Switcher.  This easy-to-use HDMI switch ensures seamless transition while switching video sources, with EDID copy  maintaining your video resolution.
Seamless Signal Selection
Ensure seamless transition while switching video sources, with EDID copy  maintaining native resolution with support for 1080p. Video connection emulation ensures the settings on any connected computers are not disrupted while switching to a different video source.
Effortless Control
Save time by connecting two HDMI video source devices to your HDMI display instead of manually connecting individual cables. Mounting hardware is also included for a tidy, professional installation.
Versatile Switching Options
Enjoy hassle-free operation with three different switching modes:
Automatic port selection: Enables your most recently activated video source to be displayed automatically.
Priority port selection: Â Prioritizes input number two above input number one. If the video source connected to input number two is activated that source will be displayed.
Manual port selection: Â Enables you to manually select your HDMI source with easy-to-use front panel buttons.
The StarTech.com Advantage
- Save your time, by conveniently accessing multiple HDMI source devices with a single HDMI display
- Worry-free switching, with EDID copy video and connection emulation ensuring no signal loss
- Hassle-free operation, with three video selection modes including automatic, priority, and manual
