All stock codes associated to this product
FPWFXBAT, 3695901, 0065030870382
Mounting |
---|
Mounting type | Wall |
Maximum weight capacity | 40 kg |
Minimum screen size | 94 cm (37") |
Maximum screen size | 190.5 cm (75") |
Panel mounting interface | 300 x 200,300 x 300,400 x 200,400 x 400,600 x 400,800 x 400 |
Number of displays supported | 1 |
Minimum VESA mount | 300 x 200 mm |
Maximum VESA mount | 800 x 400 mm |
Ergonomics |
---|
Built-in spirit level | Yes |
Cable management | No |
Distance to the wall (min) | 2.2 cm |
Design |
---|
Product colour | Black |
Cable management | No |
Certification | CE, FCC |
Anti-theft function | Yes |
Housing material | Plastic, Steel |
Technical details |
---|
Mounting type | Wall |
Sustainability certificates | RoHS |
Packaging content |
---|
Screws included | Yes |
Decorative cover included | Yes |
Number of decorative covers included | 2 pc(s) |
Anchors included | Yes |
Number of anchors included | 6 |
Washers included | Yes |
Number of washers included | 10 |
Spacer included | Yes |
Number of spacers included | 16 |
Number of screws | 30 |
Manual | Yes |
Safety bar | Yes |
Weight & dimensions |
---|
Width | 29 mm |
Height | 440 mm |
Weight | 2.9 kg |
Depth (max) | 89.8 cm |
Packaging data |
---|
Package width | 235 mm |
Package depth | 978 mm |
Package height | 49 mm |
Package weight | 3.9 kg |
Manual | Yes |
Logistics data |
---|
Master (outer) case width | 254 mm |
Master (outer) case length | 1003 mm |
Master (outer) case height | 137 mm |
Products per master (outer) case | 3 pc(s) |
Harmonized System (HS) code | 85299097 |
Other features |
---|
Mounting type | Wall |

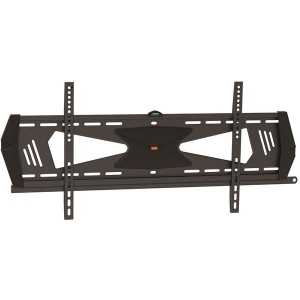

Display Wall Mount | Anti-Theft | For 37" to 75" Displays
Save space while improving the appearance of your work area, with this low-profile TV wall mount. The mount sits close to the wall to support a VESA Mount compliant TV from 37" to 75", and offers anti-theft protection.
Low-Profile Design for Meeting Areas or Digital Signage
Mount your flat-screen TV or monitor in a location that's convenient for visitors, clients or employees. The wall mount safely and securely supports your TV in a fixed position, less than an inch (22 mm) from the wall, to provide a sleek, low-profile look. Â
It’s ideal for lobbies, hallways, boardrooms, works areas, customer-facing areas or for creating digital signage. The wall mount supports most 37" to 75" (940 to 1905 Â mm) LED or LCD flat panel TVs weighing up to 88 lb. (40 kg).
Anti-theft Protection
Engineered with heavy-duty steel, the robust steel TV wall mount securely supports your flat-screen TV, to protect your investment.  Ideal for areas with high traffic  and minimal supervision, the TV mount features a steel bar that can be locked into place with a padlock (purchased separately) to deter theft of your equipment. Â
Easy Setup
A built-in level helps to ensure your TV is aligned in a straight position on your wall, to ensure optimum viewing.
The FPWFXBAT is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Save space with this flat-screen TV wall mount for 37" to 75" TVs; Heavy-duty steel TV wall mount supports up to 40 kg (88 lb)
- Low profile TV mount sits less than 1" (only 22 mm) from the wall
- Stays in fixed position, with built-in level to ensure ideal position during installation
