All stock codes associated to this product
VID2HDCON, 1861473, 0065030845274
| Other features |
|---|
| Housing material | Plastic |
| Converter type | Active video converter |
| Product colour | Black |
| Certification | CE, FCC, REACH |
| Features |
|---|
| Housing material | Plastic |
| Converter type | Active video converter |
| Product colour | Black |
| Certification | CE, FCC, REACH |
| Video |
|---|
| Maximum video resolution | 1600 x 1200 pixels |
| Analog signal format system | NTSC, PAL |
| Video resolutions | 1024 x 768,1280 x 1024,1600 x 1200 |
| Ports & interfaces |
|---|
| 3.5 mm connector | Yes |
| Output interface | HDMI |
| Host interface | Composite, S-Video |
| Power |
|---|
| Power consumption (typical) | 2.5 W |
| Power plug type | Type M |
| Input current | 0.3 A |
| Operating voltage | 5 V |
| Operating current | 1.2 A |
| Input voltage | 100 - 240 V |
| External power adapter | Yes |
| Technical details |
|---|
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions |
|---|
| Width | 163 mm |
| Depth | 164 mm |
| Height | 34 mm |
| Weight | 79 g |
| Packaging data |
|---|
| Included power plug types | ANZ, EU, JP, NA, UK |
| Package width | 155 mm |
| Package depth | 124 mm |
| Package height | 56 mm |
| Package weight | 310 g |
Convert a Composite or S-Video Signal and the Accompanying Audio to HDMI

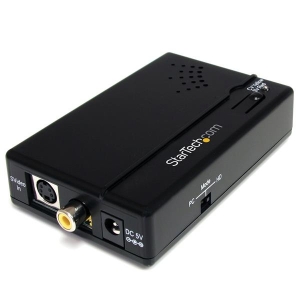

The VID2HDCON Composite and S-Video to HDMI Video Converter (with Audio) lets you connect an S-Video or Composite device, along with supporting 3.5mm audio, to your HDMI monitor or television.
Equipped with convenient selector switches for easy configuration, the S-Video/Composite to HDMI converter is able to function with both NTSC and PAL systems, and offers support for output resolutions up to 1600x1200 (PC) or 1080p (TV) to seamlessly integrate with almost any display.
The converter features an integrated 3.5mm audio connection that enables sending the output through a single HDMI cable to your destination display, avoiding the hassle of running a separate audio cable.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Support for output resolutions from 480i to 1080p allow for simple conversion to suit almost any output display
- Pure hardware design requiring no software or drivers for use which makes for a quick plug-and-play installation
