All stock codes associated to this product
FPWFXB1, 4400774, 0065030880497
| Mounting |
|---|
| Mounting type | Wall |
| Maximum weight capacity | 75 kg |
| Minimum screen size | 152.4 cm (60") |
| Maximum screen size | 2.54 m (100") |
| Panel mounting interface | 100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 200,600 x 400,600 x 600,600 x 300,800 x 400,800 x 600,900 x 600 |
| Number of displays supported | 1 |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 900 x 600 mm |
| Ergonomics |
|---|
| Built-in spirit level | Yes |
| Cable management | No |
| Distance to the wall (max) | 3.05 cm |
| Design |
|---|
| Product colour | Black |
| Cable management | No |
| Anti-theft function | No |
| Housing material | Plastic, Steel |
| Technical details |
|---|
| Mounting type | Wall |
| Sustainability certificates | RoHS |
| Packaging content |
|---|
| Screws included | Yes |
| Adapter bracket included | Yes |
| Number of adapter brackets included | 2 |
| Anchors included | Yes |
| Number of anchors included | 6 |
| Washers included | Yes |
| Number of washers included | 10 |
| Spacer included | Yes |
| Number of spacers included | 16 |
| Number of screws | 26 |
| Manual | Yes |
| Weight & dimensions |
|---|
| Width | 625 mm |
| Height | 30.5 mm |
| Weight | 3.5 kg |
| Depth (max) | 95.4 cm |
| Packaging data |
|---|
| Package width | 156 mm |
| Package depth | 980 mm |
| Package height | 380 mm |
| Package weight | 3.6 kg |
| Manual | Yes |
| Logistics data |
|---|
| Master (outer) case width | 177 mm |
| Master (outer) case length | 995 mm |
| Master (outer) case height | 210 mm |
| Products per master (outer) case | 5 pc(s) |
| Harmonized System (HS) code | 85299097 |
| Other features |
|---|
| Mounting type | Wall |

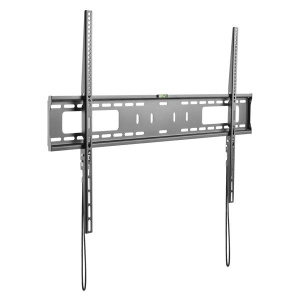

Flat Screen Mount | Weight Cap. 165 lb. (75 kg) | 60" to 100" TV | Cold-Rolled Steel | VESA Compatible
This  heavy-duty  TV  wall mount  is ideal for  commercial  and business  purposes such as digital signage in lobbies, displays for boardrooms or anywhere a large  professional display  needs to be mounted.  Â
Engineered for  Heavy Duty  Commercial Grade TVs Â
This TV wall mount is  designed to be used with commercial or  heavy-duty  televisions and displays. It supports a weight of up to 165  lbs.  or 75 kilograms and has been  thoroughly tested to  triple  the  rated  weight  capacity  to ensure premium product quality  and reliable performance. Â
The mount is ideal for 60"  to 100"  TVs  including curved TVs; however,  most  larger  or smaller TVs can be accommodated  if they fall within the listed weight capacity. Â
Straightforward Installation & Removal Â
This TV mount  is VESA  compatible and  has  two rows of seventeen  mounting holes across the  wall bracket  to  accommodate a variety of  spacing between studs  and  helping you to center your display.  The included bubble level helps  to ensure  an accurate  mount  to the wall. Â
Once the  wall  bracket  is attached to the wall  and the vertical brackets are attached to the  TV, the  TV  simply attaches to the mount using the spring locks and can be as easily removed using the  release pull straps. Â
Comprehensive  Product Testing & Expert Technical Support  Â
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local  StarTech.com  Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales. Â
FPWFXB1 Â is backed by a StarTech.com 5-year warranty and free lifetime technical support. Â
The StarTech.com Advantage
- Securely mount large commercial TVs and digital signage to boardrooms, lobbies and anywhere large displays are required
- Designed to support slim TVs up to 165 lbs. (75kg), ideal for 60" to 100" TVs
- Mount TV or display using the spring locks and simply remove using the release straps
