All stock codes associated to this product
VID2VGATV3, 4640515, 0065030882606
| Other features |
|---|
| Housing material | Plastic |
| Converter type | Active video converter |
| Product colour | Black |
| Certification | CE, FCC, REACH |
| Features |
|---|
| Housing material | Plastic |
| Converter type | Active video converter |
| Product colour | Black |
| Certification | CE, FCC, REACH |
| Video |
|---|
| Maximum video resolution | 1920 x 1200 pixels |
| Video resolutions | 800 x 600,1024 x 768,1280 x 1024,1600 x 1200,1680 x 1050,1920 x 1080,1920 x 1200 |
| Maximum refresh rate | 60 Hz |
| Ports & interfaces |
|---|
| Output interface | VGA |
| Host interface | Composite + S-Video |
| Power |
|---|
| USB powered | Yes |
| Technical details |
|---|
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions |
|---|
| Width | 58 mm |
| Depth | 66 mm |
| Height | 20 mm |
| Weight | 48 g |
| Packaging data |
|---|
| Quick installation guide | Yes |
| Package width | 113 mm |
| Package depth | 150 mm |
| Package height | 28 mm |
| Package weight | 100 g |
| Cables included | USB |
| Logistics data |
|---|
| Master (outer) case width | 327 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 450 mm |
| Products per master (outer) case | 100 pc(s) |
Composite Video Scaler | On-Screen Display

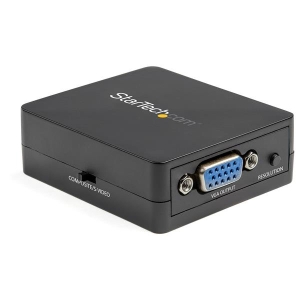

This  composite  to VGA  video  converter  provides a simple way to convert  and scale  composite  and  S-Video  signals to  VGA  output, for use with computer monitors, projectors or HDTV sets. Â
Hassle-Free Setup and Easy to Use Â
Equipped with an  on-screen  display (OSD) menu and  a toggle switch  for simple configuration and selection of your video output settings, this compact  S-Video  to VGA  video converter  installs quickly and easily,  for a true plug-and-play experience.  Â
Save  on  Upgrade  Costs Â
By using this  AV  to VGA adapter  you’ll be able to continue using your legacy equipment (VCR, DVD  player, etc.) with your  VGA  display or monitor, ultimately saving  the costs of upgrading your equipment. It's ideal for boardroom settings, medical imaging and watching old home videos on your  VGA  display or new HDTV. Â
Crystal-Clear Picture Quality Â
The  AV  to  VGA  converter  features  an  integrated  video scaler  circuit  that  dynamically converts the  S-Video  or  composite video  input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector.  It supports resolutions up to 1920x1200 @ 60Hz, so you can enjoy high-definition  video  without  having to sacrifice  picture quality. Â
VID2VGATV3 is backed  by a StarTech.com 2-year warranty and free lifetime technical support.      Â
The StarTech.com Advantage
- Convert and scale S-Video and composite input to VGA output
- Features on-screen display for simple output setting selection
- Supports high-definition resolutions up to 1920x1200 @ 60Hz
