All stock codes associated to this product
FPWARTS2, 4875212, 0065030870344
Mounting |
---|
Mounting type | Wall |
Maximum weight capacity | 50 kg |
Minimum screen size | 94 cm (37") |
Maximum screen size | 2.03 m (80") |
Panel mounting interface | 200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400 |
Number of displays supported | 1 |
Minimum VESA mount | 200 x 100 mm |
Maximum VESA mount | 600 x 400 mm |
Ergonomics |
---|
Tilt angle range | -15 - 2 ° |
Swivel angle | 90 ° |
Cable management | Yes |
Distance to the wall (min) | 7 cm |
Distance to the wall (max) | 65 cm |
Design |
---|
Product colour | Black |
Cable management | Yes |
Certification | CE |
Technical details |
---|
Mounting type | Wall |
Sustainability certificates | RoHS |
Packaging content |
---|
Screws included | Yes |
Decorative cover included | Yes |
Number of decorative covers included | 2 pc(s) |
Anchors included | Yes |
Number of anchors included | 6 |
Washers included | Yes |
Number of washers included | 17 |
Spacer included | Yes |
Number of spacers included | 16 |
Number of screws | 33 |
Wrench included | Yes |
Mounting kit | Yes |
Manual | Yes |
Number of wrenches included | 1 |
Number of hex keys included | 1 |
Hex key included | Yes |
Weight & dimensions |
---|
Width | 800 mm |
Height | 487 mm |
Weight | 16.8 kg |
Depth (max) | 67 cm |
Packaging data |
---|
Package width | 925 mm |
Package depth | 550 mm |
Package height | 100 mm |
Package weight | 18.8 kg |
Mounting kit | Yes |
Manual | Yes |
Logistics data |
---|
Master (outer) case width | 935 mm |
Master (outer) case length | 565 mm |
Master (outer) case height | 220 mm |
Products per master (outer) case | 2 pc(s) |
Harmonized System (HS) code | 85299097 |
Other features |
---|
Mounting type | Wall |

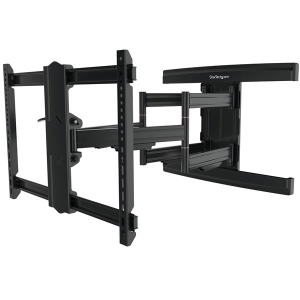

Heavy Duty TV Wall Mount | Steel | For up to 100" Displays
This swivel tv wall mount is ideal for a meeting space, lobby, boardroom, classroom or other venues. It provides an impressive and secure way to display a flat-panel TV or mount a digital signage display, while saving valuable space. 
Robust Steel Construction
Engineered from high-grade steel, the heavy duty tv wall mount securely supports VESA compatible displays, including curved TVs, up to 100" with a weight capacity of 165 lb. (75 kg).
Full-Motion Adjustment
With a smooth and effortless motion, you can extend the articulating arm out from the wall up to 31.7" (805 mm). You can also retract the arm back to nest just 2.9" (75 mm) away from the wall.
Find the Right Viewing Angle
Swivel your screen +/- 90 degrees and tilt your screen -2 to +15 degrees for ideal viewing and to reduce glare. The TV wall mount bracket also has a screen level adjustment, so you can adjust your display up to 3 degrees clockwise or counterclockwise after it is installed.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
FPWARTS2 is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- LARGE 100" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays incl. curved TVs up to 100 inch (165 lb/75 kg) w/ a durable full-motion steel frame and a powder-coated finish
- WIDE RANGE OF MOTION: Articulating TV wall mount offers +/-90 ° swivel, +2/-15 ° tilt & +/-3 ° LCD screen level adjustment & arms allow low-profile at 2.9" (75 mm) from wall or extend to 31.7" (805 mm)
- LATERAL ADJUSTMENT: Full motion TV wall mount w/ post-install lateral shifting lets you center the display on a wall or corner, w/ 16"/24" off-centered studs w/ range of 47"/1.2m from left to right
