Allied Telesis AT-IE048-480-20 uninterruptible power supply (UPS)

Power
Output power	480 W
Input operation voltage (min)	90 V
Input operation voltage (max)	350 V
Output operation voltage (max)	48 V
Maximum current	15 A
Efficiency	94%
Power factor	0.98
Input frequency	50/60 Hz
Performance
Power protection features	Over current, Over voltage, Overheating
LED indicators	Alarm, Status
Features
Output power	480 W
Input operation voltage (min)	90 V
Input operation voltage (max)	350 V
Output operation voltage (max)	48 V
Maximum current	15 A
Efficiency	94%
Power protection features	Over current, Over voltage, Overheating
Power factor	0.98
Input frequency	50/60 Hz
Design
Form factor	Tower
Product colour	White
Cooling type	Active
LED indicators	Alarm, Status
Housing material	Metal
Operational conditions
Operating temperature (T-T)	-20 - 70  Â°C
Storage temperature (T-T)	-40 - 85  Â°C
Operating relative humidity (H-H)	20 - 90%
Storage relative humidity (H-H)	20 - 90%
Technical details
Sustainability certificates	RoHS, WEEE
Harmonized System (HS) code	85078000
Cooling
Cooling type	Active
Weight & dimensions
Width	70 mm
Depth	117 mm
Height	124 mm
Weight	1.2 kg
Other features
Nominal output voltage	48 V
Nominal input voltage	90 - 264; 98 - 350 V

---

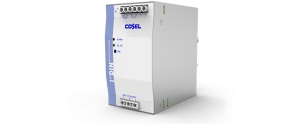

The ruggedized IE048-480 industrial power supply is a functional accessory for Allied Telesis products to build a solution suitable for Smart Cities (e.g. Surveillance & Security), Industrial Ethernet, Transportation or any application requiring systems that function in harsh environment with extended operating temperature. The IE048-480 is a power supply delivering reliable 480W output power at 48Vdc; it was fully tested and validated to operate with Allied Telesis Industrial products. Housed in compact metal case with DIN-rail clip, it takes special account of the mechanical robustness, electromagnetic compatibility and thermal characteristics to exhibit the required strengths to work satisfactorily in harsh environment where it will be exposed Its highly efficient and stable output power has the capability to support 150% of peak load. The nominal output voltage of 48Vdc can be adjusted to match the application requirements. The AC/DC rectifier operates over the full range of AC input voltage to fit worldwide power grids. The included active Power Factor Correction circuit (PFC) reduces energy costs by eliminating reactive power and harmonics from power lines. Besides the increment of efficiency, PFC is to comply with international regulations, which established limits on harmonic currents that can appear on the AC main line.
