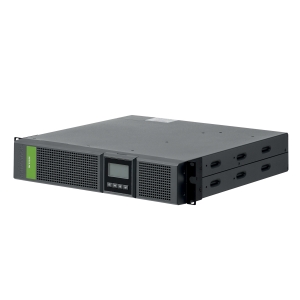

Socomec NETYS PR Rack/Tower NPR-1700-RT uninterruptible power

Power
Output frequency	50/60 Hz
Output power capacity	1.7 kVA
Output power	1350 W
Input operation voltage (min)	161 V
Input operation voltage (max)	276 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Efficiency	98%
Emergency Power Off (EPO)	Yes
Output power factor	0.8
Efficiency (ECO mode)	98%
ECO mode	Yes
Input frequency	50/60 Hz
Performance
UPS topology	Line-Interactive
Number of output phases	1
Number of input phases	1
Waveform	Sine
Power protection features	Overload, Short circuit
Automatic Voltage Regulation (AVR)	Yes
Features
Output frequency	50/60 Hz
UPS topology	Line-Interactive
Output power capacity	1.7 kVA
Number of output phases	1
Number of input phases	1
Output power	1350 W
Input operation voltage (min)	161 V
Input operation voltage (max)	276 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Efficiency	98%
Emergency Power Off (EPO)	Yes
Waveform	Sine
Power protection features	Overload, Short circuit
Output power factor	0.8
Automatic Voltage Regulation (AVR)	Yes
Efficiency (ECO mode)	98%
ECO mode	Yes
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	9 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
Serial ports quantity	1
RS-232 ports	1
Ethernet LAN (RJ-45) ports	2
USB port type	USB Type-B
Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at full load	8.4 min
Design
Rack capacity	2U
Form factor	Rackmount/Tower
Product colour	Grey
Safety	IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2
Certification	IEC/EN 62040-2, AS 62040.2 CE, RCM (E2376)
Cooling type	Active
Display type	LCD
Technical details
Output frequency	50/60 Hz
Cooling
Cooling type	Active
Weight & dimensions
Width	440 mm
Depth	436 mm
Height	87 mm
Weight	18 kg
Certificates
Safety	IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2
Certification	IEC/EN 62040-2, AS 62040.2 CE, RCM (E2376)

---

NETYS PR Rack/Tower
HIGH PERFORMANCE PROTECTION ON RACK OR TOWER - FROM 1700 TO 3300 VA Battery back-up to protect your electrical devices
Advantages A secure and professional supply continuity - Assures service continuity to critical applications. - Designed for professional applications: the sinevawe inverter technology assures full compatibility with any kind of load and power supply. Tailored to IT networking The space and time-saving tower/rack conversion option means it can be installed easily either in tower mode or inside standard 19" rack cabinets depending on the user’s needs. Simple to install - No configuration needed on first startup. - Compact footprint (2U/89 mm) for installation in rack cabinets. - Attractive design for visible installation in offices. - USB port and HID protocol as standard for direct interfacing with Windows Â® systems, without the need for additional specialist software. Protection for your data line Integrated NTP protection for LAN/ADSL connection against the risk of data line overvoltage. Meets practical needs - Optional battery extension modules (EBM) to meet all back-up time requirements, even after installation. - Clear and uncluttered LCD interface, with buzzers that immediately indicate the operating status of the UPS, even for less specialist users. - Simplified maintenance and Battery ‘hot swap’, without closing down other applications. Easy to use and to integrate - Wide range of communication protocols available in options (including JBUS, TCP/IP and SNMP) for integration into LAN networks or building management systems (BMS). - Easy connections to the applications (depending on power) via 8 or 8+1 IEC 320 (IT standard) sockets. - Load segmentation function to prioritize loads and manage critical situations. - EPO (Emergency Power Off) emergency stop. - RS232 advanced connections for the management of the power supply and local/ remote shutdown of applications.
