All stock codes associated to this product
F1DN204KVM-UN-4, F1DN204KVMUN4, 5088494, 4260184671687
| Video |
|---|
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Ports & interfaces |
|---|
| Console ports | 3.5mm headphone, DisplayPort, HDMI, RJ—45, USB A |
| USB connector type | USB Type-B |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| HDMI version | 2.0 |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI/DisplayPort |
| Audio connections | Yes |
| HDMI ports quantity | 2 |
| DC-in jack | Yes |
| Performance |
|---|
| HD type | 4K Ultra HD |
| Video bandwidth | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Design |
|---|
| Product colour | Black |
| Rack mounting | Yes |
| Certification | FCC Class B UL CE RoHS ICES RCM |
| Housing material | Aluminium, Metal |
| Power |
|---|
| Input current | 2.5 A |
| Power source | AC |
| DC input voltage | 12 V |
| AC input voltage | 100 - 240 V |
| External power adapter | Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions |
|---|
| Width | 317.5 mm |
| Depth | 162.6 mm |
| Height | 91.4 mm |
| Weight | 2.2 kg |
| Packaging content |
|---|
| Cables included | AC |
| Manual | Yes |
| AC adapter included | Yes |
| Certificates |
|---|
| Certification | FCC Class B UL CE RoHS ICES RCM |
| Logistics data |
|---|
| Harmonized System (HS) code | 85176200 |

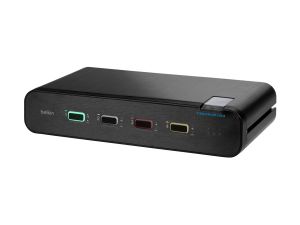

Designed to deliver a streamlined user experience when working across security enclaves, Belkin's Universal 2nd Gen Secure KVM switches meet the latest in Common Criteria and NIAP Protection Profile for Peripheral Switching Devices version 4.0 requirements. Compatible with the optional Belkin KVM Remote Control with Integrated Keyboard, the Universal 2nd Gen Secure KVMs elevate the user experience while vastly improving enclave awareness and minimizing operator errors. The keyboard combined with a variety of mounting options from Belkin helps declutter the desk without jeopardizing operator control. Optical data diodes and embedded peripheral emulation allow operators to safely share peripherals across multiple security enclaves without exposing potential vectors for attack. Innovative video combo connectors combined with auto-sensing and internal converters make the Universal 2nd Gen SKVM Series compatible with modern and legacy systems, eliminating the need for external converters and their inherent cost and compatibility problems. Always on, active anti-tamper and some of the most advanced protections against ultrasonic audio attacks round out the Universal 2nd Gen SKVMs. US-Manufactured and TAA-compliant, these secure KVM series are ideal for use in IT environments that demand rigorous cybersecurity provisions–including government, military, and healthcare applications.
Meets the Highest Standards for Cybersecurity Ideal for highly sensitive applications that demand isolation between different network security enclaves. The Belkin Universal 2nd Gen Secure KVM Switches utilize optical data diodes and peripheral emulation on each channel to help prevent data leakage between computers while maintaining strict air-gap isolation, even when sharing peripherals. An 8th order elliptical audio filter protects against ultrasonic attacks.
Universal Video Compatibility With Combo Connector and Internal Conversion DisplayPort/HDMI combo connectors on each input and output allow the same KVM to accommodate systems with DisplayPort, HDMI, and DVI video outputs and modern and legacy monitors, eliminating the need, cost, and uncertainties with external converters. This flexibility enables IT managers to deploy the same, secure KVM switch across their network and prolong the useful life of the KVM simply by matching the appropriate Belkin cable with each connected system and monitor. Cutting-edge video performance delivers up to 4K resolution and 60Hz refresh on each display.
Belkin KVM Remote Control With Integrated Keyboard Elevates the User Experience The Universal 2nd Gen Secure KVMs are compatible with Belkin’s innovative KVM Remote Control with Integrated Keyboard. The remote control combines channel selection with a backlit mechanical keyboard that mimics the enclave color codes for each channel, minimizing operator errors. The ability to control the KVM via the remote combined with Belkin’s mounting options help enhance user experience and efficiency by decluttering the desk.
