All stock codes associated to this product
PRIME H610M-A WIFI D4, PRIME H610MA WIFI D4, 5872839, PRIMEH610MAWIFID4, PRIME-H610M-A-WIFI-D4, II353695, 4711081758228

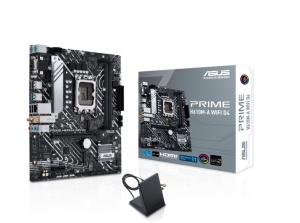

Intel ® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Intel ® 1 Gb Ethernet, WIFI 5, DisplayPort, HDMI ®, D-Sub, USB 3.2 Gen 2 ports, SATA 6 Gbps, Addressable Gen 2 headers, and Arua Sync
Intel ® LGA 1700 socket: Ready for 13th ?® processors
Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
Ultrafast connectivity: 32Gbps M.2 slot, Intel ® 1 Gb Ethernet, WIFI 5 and USB 3.2 Gen 2 ports
Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Specifications
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
Chipset | Intel® H610 Chipset |
Form Factor | mATX Form Factor 9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm ) |
I/O Connectors | 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x D-Sub port 1 x Wi-Fi Module 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
Integrated CPU Graphics | 1 x DisplayPort** 1 x D-Sub port 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
LAN | 1 x Intel® 1Gb Ethernet |
PCI Slots | Intel® 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® H610 Chipset 1 x PCIe 3.0 x1 slot |
Processor Support | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
RAID | None |
RAM Type/Bus/Max | |
Socket | LGA1700 |
Storage Interface | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports |
Warranty | 3 Years |
Weight | |
RAM Type/Bus/Max. | 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory |
Wireless &Bluetooth | Wi-Fi 5 (802.11 a/b/g/n/ac), Supports 2.4/5GHz frequency band, Bluetooth v5.0 |
